Home > Products > Solar Connector & cable > REOO Solar Connector,low Price Factory Supply for Solar Photovoltaic System
REOO Solar Connector,low Price Factory Supply for Solar Photovoltaic System
- Shanghai
You May Like
-
Solar Power Connector MC4 T Branch MC4 Connector
-
MC4 Connector Adapter Male and Female PV Module Connector for Phoectricicy System
-
MC4 Solar Connector T Type of 1 Female to 2 Male Adapter for PV Cable
-
Solar Connector MC4 Bulkhead Connector Panel Connector TUV
-
Solar Connector REOO MC4 Connector RO-1 for Photovoltaic System
-
High Quality Solar Panel Photovoltaic Connector MC4 for 4mm2 or 6mm2 Cable
Product Details
| Place of Origin | Jiangsu, China | Brand Name | REOO | |
| Model Number | RO-1 | Type | Adapter | |
| Application | Power | Gender | Other, female and male |
Product Description

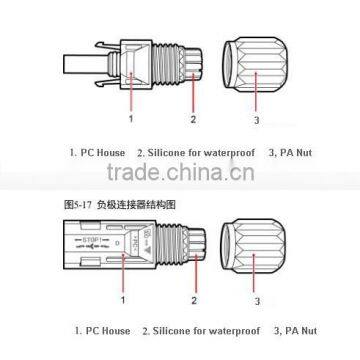

MC4 Solar power cable connector
The advantage of REOO Solar connector

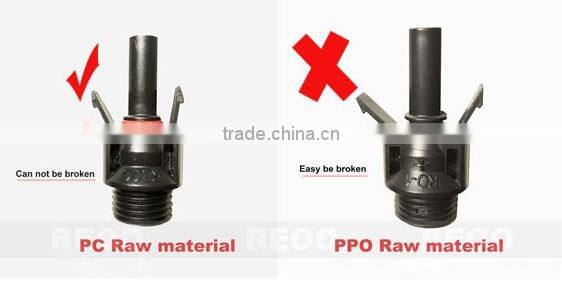

1, Polycarbonate raw material, Not PPO.
2, Ultrasonic hot melting , Most company use fixing clip.
3, Manufacturer price.
Raw material | Used for | Price | Characteristic |
PPO PX9406P-7001 | Junction box | Lower | Most of company use it for junction box. |
PPO 540Z | Junction box | Lower | Lower price |
PPO V0150B | Junction box | Middle | RTI higher than PX9406P |
PPO 644Z | Junction box | Middle | Good quality for junction box |
PA66 FR7025 | Connector nut | Middle | Most of company use it for connector |
PA66 FR370 | Connector nut | Middle | Most of company use it for connector |
PC EXL9330 | Connector house | Expensive | Top quality. |

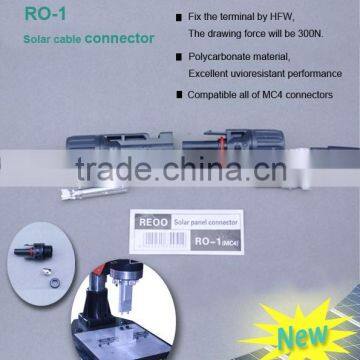

Item | RO-1 solar cable connector |
Compatible: | MC4 solar connector |
Insulation material: | PC/PPO |
Rated current : | 30A |
Rated voltage: | 1500V |
Test voltage : | 6000V(50Hz,1Min) |
Contact material : | Copper Tin plated |
Contact resistance: | 5mΩ |
Degree of protection : | IP67 |
Safety class: | 2 |
Flame class: | UL94-V0 |
Insertion force : | ≤50N |
Withdrawal force : | ≥50N |
Ambient temperature range : | -40 degree to +90 degree |
Connector diameter : | 4mm |
Compatible cable cross sections : | solar cable 4.0mm2 and 6.0 mm2 |
Suitble cable : | 2.5-6.0mm2 AWG 14/12/10 |
Be used for: | Connecting PV cable |
characteristic | High insulation,Big tension,Fast integration |
REOO Connector use PC raw material, It is top quality.

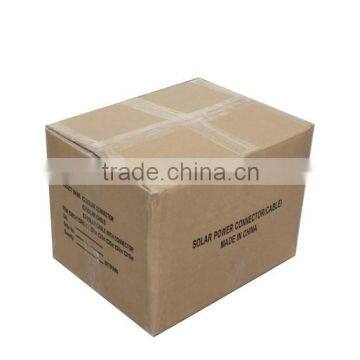

Package
Male house | 100 pcs / PE bag. 10 bag / carton, also 1000 Pin/carton |
Female house | 100 pcs / PE bag. 10 bag / carton, also 1000 Pin/carton |
Measure | 380*290*470 mm/carton |
Net weight | 34 kg / carton |
Gross weight | 35.5 kg / carton |
