New High Quality MC4 Adapter PV Connectors for Solar Cells Panels
- 100000 Pair / Pairs per Month
- Shanghai
- T/T
You May Like
-
2016 REOO NEW MC3 Solar Adapter Connector with TUV
-
High Quality UL/ TUV Approve MC4 Solar Connector from REOO connector supplier
-
REOO supply MC4 Y Solar System Solar Panel Connector
-
solar panel cable 4mm Reach rosh wires xlpe pv dc tinned copper solar power cable
-
MC4 electrical connector MC 4 connector female and male
-
pv mc4 crimping tool with competitive price
Product Details
| Place of Origin | Jiangsu, China | Brand Name | REOO | |
| Model Number | RO-1T | Type | Other, MC4 connector |
Product Description

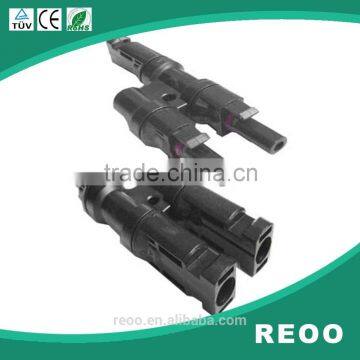

MC4 Solar power cable connector
The advantage of REOO Solar connector
1, Ultrasonic hot melting , Most company use fixing clip.
2, Manufacturer price.
Raw material | Used for | Price | Characteristic |
PPO PX9406P-7001 | Junction box | Lower | Most of company use it for junction box. |
PPO 540Z | Junction box | Lower | Lower price |
PPO V0150B | Junction box | Middle | RTI higher than PX9406P |
PPO 644Z | Junction box | Middle | Good quality for junction box |
PA66 FR7025 | Connector nut | Middle | Most of company use it for connector |
PA66 FR370 | Connector nut | Middle | Most of company use it for connector |
PC EXL9330 | Connector house | Expensive | Top quality. |
Item | RO-1 T Solar connector |
Compatible: | MC4 solar connector |
Insulation material: | PPO |
Rated current : | 30A |
Rated voltage: | 1500V |
Test voltage : | 6000V(50Hz,1Min) |
Contact material : | Copper Tin plated |
Contact resistance: | 5mΩ |
Degree of protection : | IP67 |
Safety class: | 2 |
Flame class: | UL94-V0 |
Insertion force : | ≤50N |
Withdrawal force : | ≥50N |
Ambient temperature range : | -40 degree to +90 degree |
Connector diameter : | 4mm |
Compatible cable cross sections : | solar cable 4.0mm2 and 6.0 mm2 |
Be used for: | Parallel connecting solar panel |
Suitble cable : | 2.5-6.0mm2 AWG 14/12/10 |
characteristic | High insulation, Fast integration |
REOO Connector use PC raw material, It is top quality.
Package
1Male &2 Female | 300 pairs / carton |
2 Male &1 Female | 300 pairs / carton |
Measure | 380*290*470 mm/carton |
Net weight | 34 kg / carton |
Gross weight | 35.5 kg / carton |
