REOO High Quality New Spanner for MC4 Solar Connector
- Shanghai
You May Like
-
MC4 Solar Connector T Branch Connector Male & Female Kit For Solar Panel
-
IP65 PV Connector Set MC3 Solar Connector Male&female Terminal Kits for Solar Panel 2.5-6.0mm2 Free Shipping
-
MC4 Connector for Solar Panel, Photovoltaic Connector, Double Seal Ring for Better Water Proof TUV
-
Promotion Price Solar Cable Adapter Y Branch Connectors F/F/M and M/M/F
-
REOO TUV Certified Solar Cable Connector MC 4 RO-1 Solar Panel Cable Connector
-
REOO 2016 MC4 TUV Certified Solar Cable Connector With Crimping Tools and Spanner Quality Choice
Product Details
| Place of Origin | Jiangsu, China | Brand Name | REOO | |
| Model Number | RO-1 | Type | Other, Female and Male |
Product Description

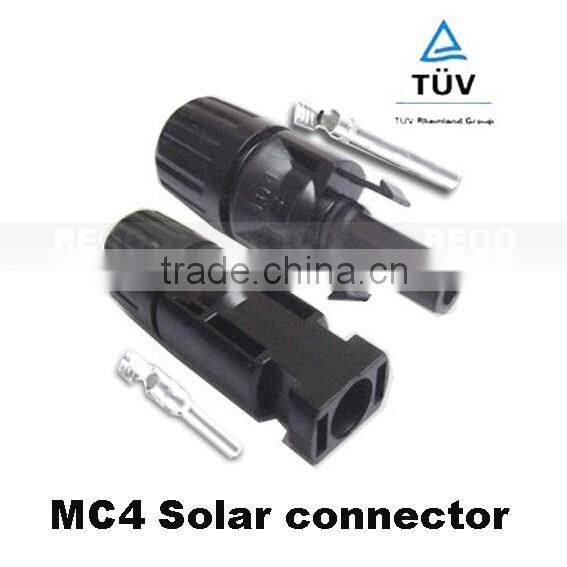

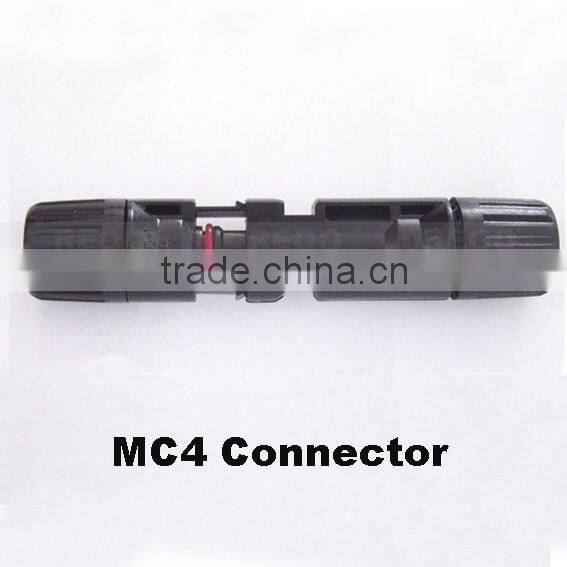

MC4 Solar power cable connector
The advantage of REOO Solar connector

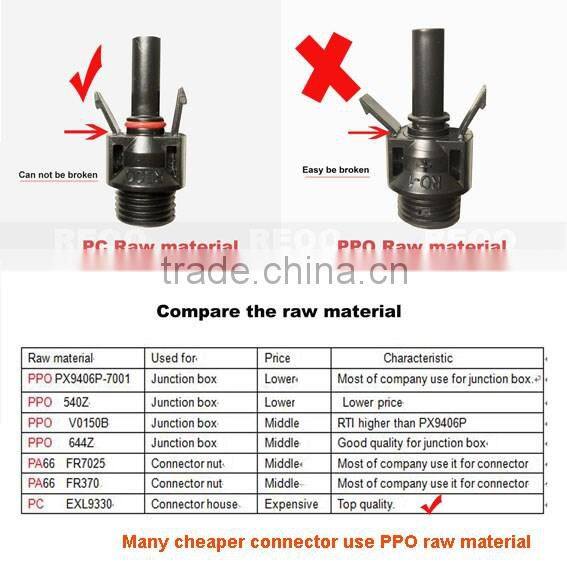

1, Polycarbonate raw material, Not PPO.

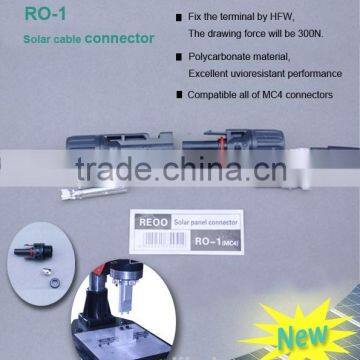

2, Ultrasonic hot melting , Most company use fixing clip.
3, Manufacturer price.
Item | RO-1 solar cable connector |
Compatible: | MC4 solar connector |
Insulation material: | PC |
Rated current : | 30A |
Rated voltage: | 1500V |
Test voltage : | 6000V(50Hz,1Min) |
Contact material : | Copper Tin plated |
Contact resistance: | 5mΩ |
Degree of protection : | IP67 |
Safety class: | 2 |
Flame class: | UL94-V0 |
Insertion force : | ≤50N |
Withdrawal force : | ≥50N |
Ambient temperature range : | -40 degree to +90 degree |
Connector diameter : | 4mm |
Compatible cable cross sections : | solar cable 4.0mm2 and 6.0 mm2 |
Suitble cable : | 2.5-6.0mm2 AWG 14/12/10 |

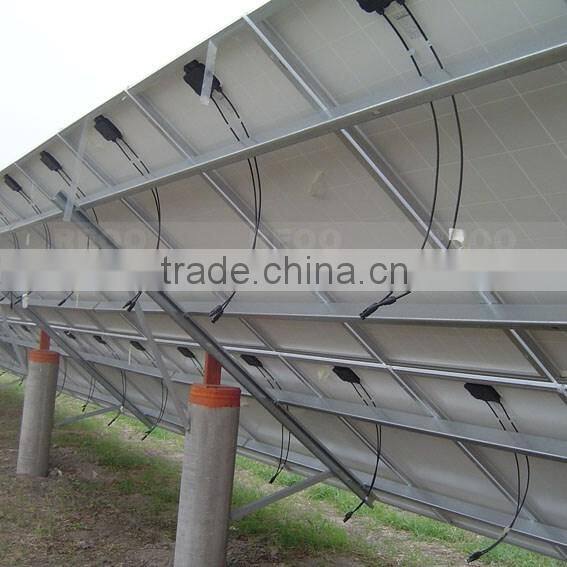

Be used for: | Connecting PV cable |
characteristic | High insulation,Big tension,Fast integration |
REOO Connector use PC raw material, It is top quality.

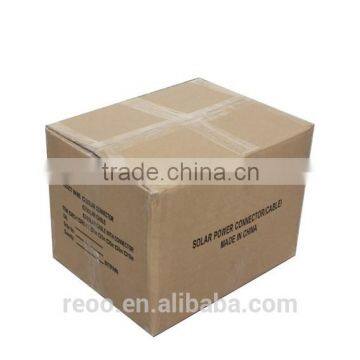

Package
Male house | 100 pcs / PE bag. 10 bag / carton, also 1000 Pin/carton |
Female house | 100 pcs / PE bag. 10 bag / carton, also 1000 Pin/carton |
Measure | 480*380*360 mm/carton |
Net weight | 34 kg / carton |
Gross weight | 35.5 kg / carton |
| Mr Mike Xu
NANTONG REOO TECHNOLOGY CO.,LTD.
Add: Chennan industrial park, Rudong, Jiangsu,China
Tel: 86 513 8410 5399
Fax: 86 513 8410 5505
Skype: reoochina
WhatsApp: 86 1390 1472 859
Wechat: REOO2108 |
