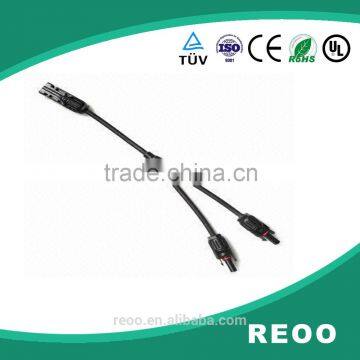

Promotion price Solar Cable Adapter Y Branch Connectors F/F/M and M/M/F
- Shanghai
You May Like
-
REOO TUV certified solar cable connector MC 4 RO-1 solar panel cable connector
-
REOO 2016 MC4 TUV certified solar cable connector with crimping tools and spanner
Quality Choice
-
MC4 solar panel mount connector waterproof IP67 for panel mount PA insulated
-
MC4 solar panel mounting Connector,MC4 install mount solar kit connect
-
MC4 REOO solar panel connector with diode,Male and Female Plug,Waterproof connectors
Quality Choice
-
MC4T Solar connector for 4 mm2 or 6 mm2 cable from China supplier REOO
Product Details
| Place of Origin | Jiangsu, China | Brand Name | REOO | |
| Model Number | RO-1 | Type | Other, Locking |
Product Description
Solar power cable connector
MC4 Solar power connector
Raw material | Used for | Price | Characteristic |
PPO PX9406P-7001 | Junction box | Lower | Most of company use it for junction box. |
PPO 540Z | Junction box | Lower | Lower price |
PPO V0150B | Junction box | Middle | RTI higher than PX9406P |
PPO 644Z | Junction box | Middle | Good quality for junction box |
PA66 FR7025 | Connector nut | Middle | Most of company use it for connector |
PA66 FR370 | Connector nut | Middle | Most of company use it for connector |
PC EXL9330 | Connector house | Expensive | Top quality. |
Item | RO-1 Y Solar connector |
Compatible: | MC4 solar connector |
Insulation material: | PC |
Rated current : | 30A |
Rated voltage: | 1500V |
Test voltage : | 6000V(50Hz,1Min) |
Contact material : | Copper Tin plated |
Contact resistance: | 5mΩ |
Degree of protection : | IP67 |
Safety class: | 2 |
Flame class: | UL94-V0 |
Insertion force : | ≤50N |
Withdrawal force : | ≥50N |
Ambient temperature range : | -40 degree to +90 degree |
Connector diameter : | 4mm |
Compatible cable cross sections : | solar cable 4.0mm2 and 6.0 mm2 |
Be used for: | Parallel connecting solar panel |
Suitble cable : | 2.5-6.0mm2 AWG 14/12/10 |
characteristic | High insulation, Fast integration |
REOO Connector use PC raw material, It is top quality.
Package
MC4 Y | 200 pairs /carton box |
Measure | 480mm x 380mm x 360mm |
Net weight | 25 kg / carton |
Gross weight | 26 kg / carton |
