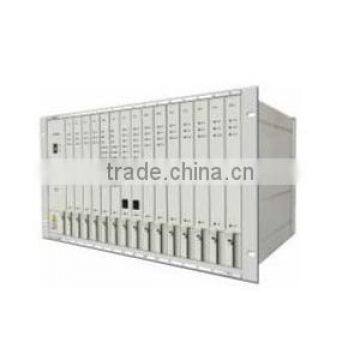

ZXA10 MSAN Transmission Equipment Contact: sherryt@versatek.cn

Features

 Advanced IP+TDM Dual Bus Architecture:

To guarantee the best quality of all services provided, ZXA10 MSAN adopts advanced IP + TDM dual bus architecture, always using the most appropriate technology to process each kind of service based on its technical attributes. IP technology is the essential main force, dedicated to broadband based new-generation services, while TDM technology is a valuable supplement, since it will still be the best solution applications in near future.for legacy network applications in near future. For IP bus, ZXA10 MSAN supports GE to slot, which fully guarantees the maxim bandwidth requirement for each subscriber port of any kind of service card. Attribute to the ALL-IP core with adequate bandwidth, ZXA10 MSAN can easily integrate with the latest Ethernet based access technologies, i.e. ZXA10 supports new-generation broadband access services like VDSL2, and EPON etc.

Multiple Service Access Platform:

ZXA10 MSAN provides the integrated access of the narrowband and broadband services to satisfy the service access requirements for different users. All kinds of user cards can freely mix-insert at the same shelf.

High Service Processing Capability:

ZXA10 MSAN has powerful narrowband service and broadband service processing capabilities.

* Up to 48G non-blocked Ethernet switching capability to meet broadband service requirements

* Offering 16K*16K non-blocked TDM switching capability for TDM service at OLT side

* Offering 2K*2K non-blocked TDM switching capability for TDM service at ONU side

* Support 1024 multicast channels.

Service Aware Platform Based on QoS:

ZXA10 MSAN is a service aware platform which can provide different quality of service according to the requirements of the service. ZXA10 MSAN realizes perfect QoSmechanism for differentiated service.

* ZXA10 MSAN realizes end to end QoS procedure, such as traffic classification, traffic policy and metering, congestion avoidance, queue scheduling, traffic shaping etc.

* Provide different kinds of methods to differentiate service from terminals, it could be by multiple PVC, by 802.1P or by VLAN ID

* Support the isolation of control stream, narrowband media stream, internet stream and video stream in different VLAN or different physical uplink port.

Comprehensive Security Guarantee:

ZXA10 MSAN realizes security functions through the following aspects:

* Maintenance security which is used to limit operation right to prevent illegal activity,record any activities on configuration etc.

* L2/L3 mechanism implemented for security, which is described in detail in chapter 3.2.8.

* Networking reliability. security, such as uplink interface protection is used to improve.

Specification:

High Adaptability to Diversified Environment:

ZXA10 MSAN provides series remote subscriber units which can fully meet the carriers’ application requirements.

* Different capacity equipments include large capacity, medium capacity, small capacity and mini capacity.

 * Different access mode equipments include front access and rear access.

* Different application environment equipments include indoor type and outdoor type.

 Powerful NMS System:

 NetNumen U31 is an integrated network management system (NMS) which manages various ZTE-developed digital devices on the backbone layer, tandem layer, and access layer.

It has the following features:

* Provide universal access, universal configuration and universal management.

* The MSAN can be managed as one network element both for narrowband and broadband service. It can also be maintenance structure of the carriers.separate so as to adapt to the existing

* NMS system can fulfill end to end service management and provides abundant north-bound interfaces to the TMN center.

 User Access & Port Identification:

 ZXA10 MSAN support user access protocol

* IPOE/PPPOE * IPOA/PPPOA

* PPPOA to PPPOE conversion ZXA10 MSAN supports user port identification to trace and locate illegal users through:

* VBAS

* DHCP Option82

* PPPoE+

* Stacking VLAN

System Architecture:

 ZXA10 multiplex service access network system contains the following equipments:

* ZXA10 T600 Optical Line Terminal (OLT)

* ZXA10 U300 Optical Network Unit (ONU)

* ZXA10 S200 Transmission Equipment In this chapter, the entities will be introduced one by one.

Reliability:

* System cold start time ≤ 5 minutes

* Down time a year ≤ 5.3 minutes

* System availability ≥ 99.999%

* Fault-free working time: MTBF > 88000h

* Fault recovery time < 30 minutes
