ZXMP M600 - A Compact CWDM product, which features large optical transmission capacity; Contact: sherry@versatek.cn
- 0 per Month
- SHANGHAI
You May Like
-
ZXMP M820 --- Metro DWDM Equipment Contact: sherryt@versatek.cn
-
ZXMP M721 --- Metro Edge iOTN Product Contact: sherryt@versatek.cn
-
VX-Pi1000GB Gigabit POE Power Injector with UL FCC CSE CSA etc. (Learn More >> www.versatek.com); Contact: sherry@versatek.cn
-
VX-Pi1000GB 10/100/1000M POE Injector with UL, FCC, CSE, CSA etc; Contact: sherry@versatek.cn.
-
VX-PI100L POE Injector eith Lightning Protector (Learn More >> www.versatek.cn); Contact: sherry@versatek.cn
-
VX-PI200 POE Injector with Metal Enclosure (Learn More >> www.versatek.com www.versatek.cn); Contact: sherry@versatek.cn
Product Details
| Place of Origin | China | Brand Name | ZXMP M600 | |
| Model Number | ZTE Versa/Versatek/VersaXpress |
Product Description
1.1.1 Overview
ZXMP M600 is a compact CWDM product, which features large optical transmission capacity and implements transparent transmission of various services at multiple rates. It can be applied to the convergence and access layers of large MANs as well as various layers of middle or small-sized MANs.
1.1.1 Key Features
Cost-effective
Provide largest capacity of 45G with low cost.
High integration

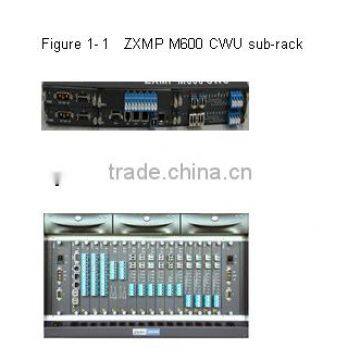

Configuration of OTM site in a single CWU sub-rack can support 4+1 wavelenghts transmission
Configuration of OTM site in a single CWE sub-rack can support 18 wavelenghts transmission
Service access and aggregation
Support any-rate-service access from 10Mbit/s - 2.7Gbit/s
Support 2×GE→2.66Gbit/s
2×GE+8×FE→GE with L2 switch
Flexbile installation and easy maintenance
1RU and 6RU sub-racks
Support AC and DC power supply
All the cards support front installation and maintenance
Reliable protection
Support OMS 1+1, OCH 1+1 protection
Support OCh 1+1 protection inside OTU card
Support ESR (Ethernet Smart Ring)
1.1.2 Specifications
Table 1 7 ZXMP M600 Specifications
Item | M600 | ||
Service slots | CWU | 4 | |
CWE | 16 | ||
Access service type | Multi rate services 10Mbit/s-2.7Gbit/s | E3, T3/DS3, E4, STM-0/STM-1/STM-4/STM-16, FE, GE, 1G FC, 2G FC, ESCON, DVB-ASI | |
Aggregation | 2×GE→2.66Gbit/s 2×GE+8×FE→GE | ||
Transmission | 80KM | ||
Protection | L0 | OCh 1+1, OMS 1+1, OCh 1+1 inside card | |
L2 | ESR | ||
Reliability | Power card 1+1 | ||
Power supply | CWU | 220/110V AC | |
-48/-60V DC | |||
CWE | -48/-60V DC | ||
Power consumption | CWU (full configuration) | 45W | |
CWE (full configuration) | 171W | ||
Dimension (Height × Width × Depth) | CWU | 44mm×441.8mm×242mm | |
CWE | 265.9 mm×482.6 mm×270 mm | ||
Weight | CWU | 3.3kg | |
CWE | 9kg | ||
Certification | CE | ||
