Home > Products > POE > VX-Pi148 10/100M Passive POE Power Injector (Learn More >> www.versatek.com www.versatek.cn); Contact: sherry@versatek.cn

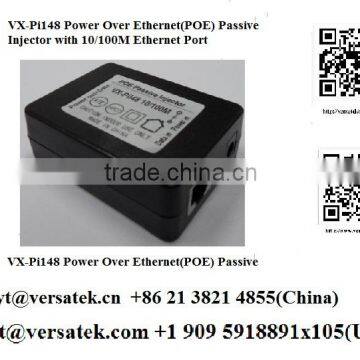

VX-Pi148 10/100M Passive POE Power Injector (Learn More >> www.versatek.com www.versatek.cn); Contact: sherry@versatek.cn

FOB Price

Negotiable

1 (Min. Order)

Port USA/China

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	VersaXpress; Versatek
Model Number	VX-Pi148	Output Type	DC
Connection	Plug In

Product Description

POWER OVER ETHERNET(POE) PASSIVE INJECTOR FEATURES:

The Versa Technology VX-Pi148 802.3af 10/100M Power Over Ethernet PoE Passive Injector Adapter works with any and all access points that are also 802.3af PoE compliant. The VX-Pi148 is self contained with both a Power Over Ethernet PoE Passive Injector Adapter and a power supply all in one, this make it much easier to deal with when keeping a clean cable room. The VX-Pi148 also has 18~48 VDC support and supplies 48VDC to all units. The Versa Technology VX-Pi148 Power Over Ethernet PoE Injector Adapter puts Power over pairs 4&5and 7&8. Data:Pins are1&2 and 3&6. This unit can also be used with Cisco PoE equipment using an altered Pin Out on the RJ-45 Cable. The VX-Pi148 also provides Auto-Recover, Over-Voltage and Short Circuit protection.
	24 Watts
	Cispr 22'B', Vcci'B', Fcc'B' Compliance
	Light Weight
	Dimensions: 74x54x25mm
	Over-Voltage Protective Installation
	Short-circuit Protective Installation
	Protection Type: Auto-Recover
	802.3af Standard
	Operating Temperature -40°C~70°C

Power over ethernet poe adapter Specifications:

Specifications		Specifications
Output Voltage	48 V	Ripple & Noise	1% Typical
Output Rating	0.5 A	Efficiency	90% Typical
Input Voltage	DC 18 ~ 48 V	Temperature Coefficient	0.05% / °C
Input Current	0.65 A Maximum	Operating Temperature	-40 ~ 75°C
Inrush Current	40 A Maximum	Storage Temperature	-40 ~ 85°C
Line Regulation	2% Maximum	Safety Description	I / P
Load Regulation	± 5%

One year limited warranty

Warning: Versa Technology is not responsible for any error and change. Content is subject to change without notice. Versa Technology assumes no responsibility for the risk of damage to any external devices (Devices that are not ours). It is the duty of the customer to check and make sure everything is compatible.
