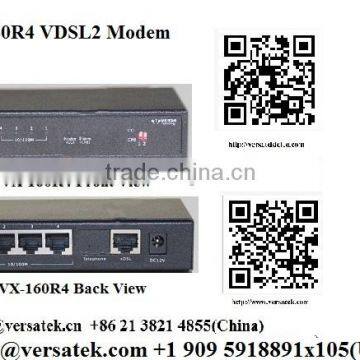

VX-VEB160R4 VDSL2 Ethernet Extender Contact: sherryt@versatek.cn


100/100Mbps Downstream / upstream, high Performance Ethernet Extender Solution
The Versa Technology VX-VEB160R4 is a High Performance Ethernet Extender Bridge. It is designed based on two core networking technology, Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers absolutely fastest data transmission speed over existing copper telephone lines without the need of rewiring. The VX-VEB160R4 Ethernet Extender supports ultra-high performance to the pervasive telephone line network with up to 100/100Mbps symmetric data rate within 300m and 20/4Mbps for 1.4km long range connections.

Implements with Existing Telephone Copper Wires to become a Network Extender
The VX-VEB160R4 is also a Lan Extender Bridge providing four RJ-45 Ethernet ports and two RJ-11 phone jacks, in which one is for VDSL connection and the other one is for POTS (Plain Old Telephone Service) connection. The VX-VEB160R4 LAN Extender has optional POTS splitter to share the existing phone line with POTS; therefore it is no need of replacing the existing copper wiring. Just plug the VX-VEB160R4 CAT5e Extender into the existing RJ-11 telephone jack and a high-performance VDSL2 network can be connected. The VX-VEB160R4 LAN Extender is ideal to be used as an Ethernet extender to an existing Ethernet network.

Delivers High-Demand Service Connectivity for ISP / Triple Play Devices by extending Cat5e
The VX-VEB160R4 Ethernet Extenders provides excellent bandwidth to satisfy the triple play devices for home entertainment and communication. With the capability of 100/100Mbps symmetric data transmission, the VX-VEB160R4 LAN Extender enables many Multi-Media services to work on local Internet, such as VOD (Video on Demand), Voice over IP, Video phone, IPTV, Internet caching server, distance education, and so on.

Easy & Flexible Installation
The Cat5 Extender Bridge is plug-and-play design and fully compatible with all kinds of network protocols. Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. The VX-VEB160R4 offers two modes, CPE and CO, for application: CPE mode is used at client side and CO mode is at central side. The CPE or CO mode can be adjusted by using a built-in DIP switch. For point-to-point connection, a CPE mode VX-VEB160R4 Ethernet Extender and a CO mode VX-VEB160R4 LAN Extender must be setup as one pair of converters to perform the connection.

Provides Superior Upstream and Downstream Transmission Performance
The VX-VEB160R4 Ethernet Extender also defines symmetric band plan for the transmission of upstream and downstream signals; the band plan performs higher transmission quality in short range for central side (CO) in symmetric mode. In all, when the VX-VEB160R4 CAT5e Extender is in profile 17a operation mode, it provides long distance transmit with Ultra-high performance to the pervasive telephone line network, and when the VX-VEB160R4 Cat5 Extender is in 30a operation mode, it gives short distance transmits with upstream and downstream transmission giving wire speed performance.

Key Features

Ports:

10/100Base-TX: 4 RJ-45, Auto-Negotiation and Auto-MDI/MDI-X
VDSL:                 1 RJ-11, female Phone Jack

PHONE:              1 RJ-11, Optional splitters for POTS connection

Functionality:

CO / CPE mode select

Selectable fast and interleaved mode
Selectable target 17a / 30a profiles

Selectable target SNR mode

Encoding:
 VDSL-DMT
- ITU-T G.993.1 VDSL

Cost-Effective VDSL2 Profile 17a/30a CO / CPE bridge solution
One box design, CO / CPE selectable via DIP Switch
Defines symmetric band plan for the transmission of upstream and downstream signals
Complies with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX and IEEE 802.3x, Flow control Ethernet standards
DMT (Discrete Multi-Tone) line coding
Half duplex Back pressure and IEEE 802.3x Full Duplex Pause frame flow control
Optional POTS splitter to share voice and data
RJ-11 connector for VDSL port.
Data and optional voice communication can be shared simultaneously based on the existing

telephone wire
Four 10/100Mbps RJ-45 port, Auto-Negotiation and Auto-MDI/MDI-X
Supports up to 1536 bytes packet size, IEEE 802.1Q VLAN tag transparent
Hardware IGMP Snooping for Multimedia service
VDSL2 stand-alone transceiver for simple bridge modem application
Advantage of minimum installation time (Simply as Plug-and-Play)
Selectable target profile and target SNR margin
Supports extensive LED indicators for network diagnosis

VX-VEB160R4 Ethernet Extender Kit Product Features:

- ITU-T G.997.1
- ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)


 LED Indicators:
 One Power
 4 for RJ-11/VDSL2
1 for per RJ-45 10/100Base-TX port

Cabling Type:
 Ethernet
10Base-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft)
100Base-TX: 2-pair UTP Cat.5, up to 100m (328ft)


 VDSL
Twisted-pair telephone wires (AWG24 or better) up to 1.4km
Dip Switch:
 4 position DIP switch

Performance:
 - 17a profile
300m -> 99/70Mbps
400m -> 99/60Mbps
600m -> 90/45Mbps
800m -> 50/28Mbps
1000m -> 40/12Mbps
1200m -> 20/7Mbps
1400m -> 20/4Mbps

- 30a profile
300m -> 100/100Mbps
400m -> 90/90Mbps
600m -> 69/55Mbps
800m -> 48/9Mbps

VX-VEB160R4 Ethernet Extender Kit Specifications:

Physical                   System

Dimensions              130 x 84 x 21 mm Power Supply 5V DC, 2A
Weight                     400g

Temperature Range 0° to 50°C (Operating)
                                -10° to 70°C (Storage)

 Humidity 10% to 90% non-condensing

Regulation Compliance
 FCC Part 15 Class A, CE
 Standards Compliance IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
ITU-T
- G.993.1 (VDSL)
- G.997.1
- G.993.2 VDSL2 (Profile 17a/30a)

Switch Specification
Switch Processing Scheme Store-and-Forward
Address Table 2K entries
Flow Control Back pressure for half duplex
IEEE 802.3x Pause Frame for full duplex

Switch fabric 0.8Gbps
Throughput (packet per second) 0.59Mpps
Network cables 10/100Base-TX:
2-Pair UTP Cat. 3,4, 5 (100meters, max.)
EIA / TIA-568 100-ohm STP (100meters, max.)
