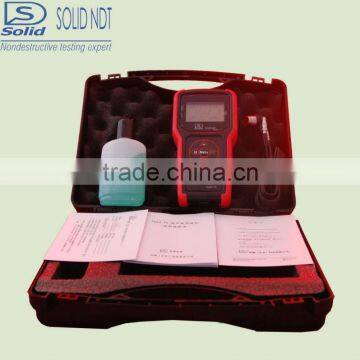

digital ultrasonic portalbe velocity gauge

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China		Brand Name	Solid
Model Number	UpadVX

1 Nodularity guage using
2 Nondestructive Velocity Testing
3 Auto Probe Zeroing Calibration Without Block

digital ultrasonic portalbe velocity gauge

Product Description

Spercifacation

Principle	Ultrasonic(Pulse-Echo/Echo-Echo)		Dimension (mm)	165×82×30
Resolution	0.1mm(> 100mm)/0.01mm(<100mm)		Accuracy	±(0.5%H+0.01)mm
Nodularity	Percentage: 50~100%,1% Grade:1-6		Thickness Range	0.75-50mm
Velocity	1000~9999m/s		Weight	250g
Calibration	Auto Sound-Velocity-Calibration		Measuring Range	Noarmal:0.75-40mm Coating: 2-25mm
	Auto Probe Zeroing Calibration		Pulser	150V Negative Pulse
Indicator	Probe Connection Indicator		Receiver	Gain	High/Low/Auto
	Coupling Indicator			Bandwidth	0.5-15MHz
Environment	Temperature:-20°C~70°C		Measuring	Result Showing	Online Statistic/Velocity
	Humidity:5%~90%			Statistic	Online:Max Min ,Standard Devration
DISLAY	LCD	High-Contract 128*64			File: Max, Min AVG, mean square error
		Beautiful printed characters, Number , Symbol, High Brightness EL Backlight	Alarm	Threshold Acoustooptical Alarm
			Memory	Files		1000 groups
				Thickness Logging		1000 data sets/group ,liner
	Update Rate	Single Point: 5 times/s		USB Storage		Connection USB is allowed, convenient to read thickness values
		Scan Mode: 25times/s
