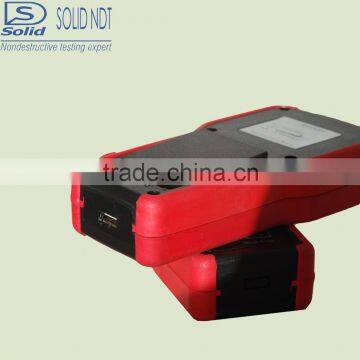

Solid newest pearl weld digital portable nodularity manual

Measuring Range

1.0-1,200mm

Measuring Resolution

0.01mm(< 100mm)/ 1mm(>100mm)

Velocity

500~20,000m/s( 20 fixed velocities)

Delay

Display Delay: -20~3400us resolution: 0.1us  Probe Delay : 0~99us resolution: 0.01us

Auto Calibration

Velocity Calibration& Probe Delay Calibration

Linear Error

Horizontal linearity error≤0.1%   Vertical linearity error ≤3%

Dynamic Range

≥36dB

Sensitivity Leavings

≥64dB 200mm 2 flat-bottomed hole

Dimension (mm)

240*180*50

Weight

1.9Kg(including battery pack)

Working Environment

Temperature:-20°C~70°C, Humidity:5%~90%,

Pulse

150V Negative Pulse

Damping :50/150/400Ω

Pulse repetition frequency PRF could be adjusted

Receiver

Measuring mode:Peak /Verge

Bandwidth:0.3~1 / 0.5~4 /2~15MHz

Detector Pattern: RF/Full-Wave/Positive /Negative half- wave

Testing Mode: pulse-Echo/Pulser-Receiver/transmission

Gain :0 to 110dB Customers define steps 0/0.2/0.5/1/2/6/12

Display

LCD

TFT Color. Display,5 options for variable brightness.

GUI Theme

Simple/Classical/Gray/Bright Light/ Dark Light

Screen Update Rate

≥60 Hz

Gate/Measuring/ Alarm

Gate

Two Separated Gates A/B

Value Display

5 value display areas, one of them is mainly area. Chosen measuring content SA/SB/DA/DB/PA/PB/A%A/A%B/dBtA/dBtB/dBrA/dBrB/SBA/DBA/PBA/LA/LB

Alarm

Thickness Value Threshold Alarm ,Separated Gate Alarm Logically

Memory

Channelparameters: 20 groups

A Scan: 2000 groups
