Home > Products > Ultrrasonic Velocity Gauge > Solid Upad VX portable digital nodularity gauge operation
Solid Upad VX portable digital nodularity gauge operation
USD $225.00 - $225.00
/ Set
1 Set(Min.Order)
- 1000 Set / Sets per Month
- beijing
- Credit Card
You May Like
Product Details
| Place of Origin | China | Brand Name | Solid | |
| Model Number | Upad VX |
Product Description

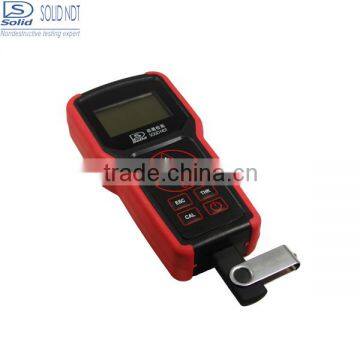

Solid Upad VX portable digital nodularity gauge operation
Feature
Upad VX Series Ultrasonic Velocity Gauge will be the best choice for accomplishing measurement with its superior feather. It is reliable and durable.Upad VX Series fit to measure cast iron, metal, plastic, china, glass, glass fiber and any other good conductors of ultrasonic, complies to JB/T9219 Standards..
Specification
| Principle | Ultrasonic(Pulse-Echo/Echo-Echo) | Dimension (mm) | 165×82×30 | |||
| Resolution | 0.1mm(> 100mm)/0.01mm(<100mm) | Accuracy | ±(0.5%H+0.01)mm | |||
| Nodularity | Percentage: 50~100%,1% Grade:1-6 | Thickness Range | 0.75-50mm | |||
| Velocity | 1000~9999m/s | Weight | 250g | |||
| Calibration | Auto Sound-Velocity-Calibration | Measuring Range | Noarmal:0.75-40mm Coating: 2-25mm | |||
| Auto Probe Zeroing Calibration | Pulser | 150V Negative Pulse | ||||
| Indicator | Probe Connection Indicator | Receiver | Gain | High/Low/Auto | ||
| Coupling Indicator | Bandwidth | 0.5-15MHz | ||||
| Environment | Temperature:-20°C~70°C | Measuring | Result Showing | Online Statistic/Velocity | ||
| Humidity:5%~90% | Statistic | Online:Max Min ,Standard Devration | ||||
| Display | LCD | High-Contract 128*64 | File: Max, Min AVG, mean square error | |||
| Beautiful printed characters, | Alarm | Threshold Acoustooptical Alarm | ||||
| Number , Symbol, High Brightness EL Backlight | Memory | Files | 1000 groups | |||
| Thickness Logging | 1000 data sets/group ,liner | |||||
| Update | Single Point: 5 times/s | USB Storage | Connection USB is allowed, convenient to read thickness values | |||
| Rate | Scan Mode: 25times/s | |||||
| Input/Output | Probe Cable | LEMO 00 (C5) x2 | Standard Package | Main Body | 1 | |
| Communication | USB | Probe | 1 | |||
| Language | Chinese /English | Manuel | 1 | |||
| Unit | mm/inch | Carrying Case | 1 | |||
| Power supply | Battery | 1.5V AAA x4 | Coupling paste | 1 | ||
| Working Time | 200 hours | Battery | 1 group | |||
| Probe | ||||||
| Applying | Mode | Frequency | Probe Diameter | Measuring Range | Min Pip Diameter | |
| Standard | DA301S | 5 MHz | 10mm | 0.75mm~20.0mm | Φ20mm×3.0mm | |
| High attenuation | DA408S | 2 MHz | 22mm | Less than 50mm | 20mm | |
