X5028 small knee type universal vertical milling machine

FOB Price

USD $5,074 - $7,971 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	X5028(1200x280mm) vertical milling machine
Type	Universal	CNC or Not	Normal
Voltage	220V/380V/415V/440V/480V	Power(W)	3kW
Dimension(LWH)	1635x1680x1810mm	Weight	1500kgs
Certification	CE; ISO9001:2008; GB/T19001:2008	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

X5028 vertical milling machine Technical Data

Product Introduction

vertical milling machine has following features:

1. one more powerful metal cutting machine,

2. high rigidity,

3. wide range of spindle feed also can bear a heavy burden.

4. the spindle taper hole can install many kinds of cylindrical cutter, disc cutter, form cutter, end milling cutter and so on,

5. optional accessories as dividing head, rotary table, machine vice,milling chuck, Digital readout, can make such machine more functional.

Main Usage:

6. Suitable for machining all parts plane, inclined plane, groove, hole,keyway, etc,

7. for machinery manufacturing, mould, apparatus, instrument, car and motor car.

Main Technical Data

SPECIFICATIONS	UNIT	Parameter
Table Size	mm	1200 × 280
Table Travel (X, Y, Z)	mm	680/260/400
Spindle nose to work surface	mm	35~435
Spindle taper		7:24 ISO40
Rapid speed of table (X, Y, Z)	mm	1000/1000/500
Table feed ( X, Y, Z )	mm	(8) 10~400 (X, Y)
T-slots ( NO:/ width/pitch )	mm	3/14/70
Spindle speed range	r.p.m	12steps 35~1500
Spindle travel	mm	70
Distance between spindle axis and colomn guidway	mm	285
Swovel angle of Vertical milling head		±30°
Main motor	kW	3
3 to feed motor feed	kW	0.75
Overall size	mm	1635 × 1680 ×1810
Net weight	kg	1500

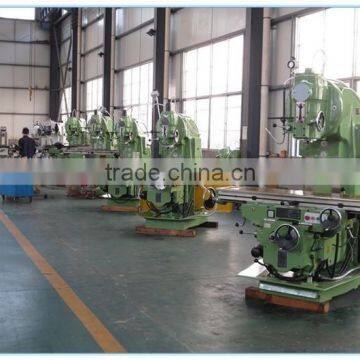

Factory Overview
