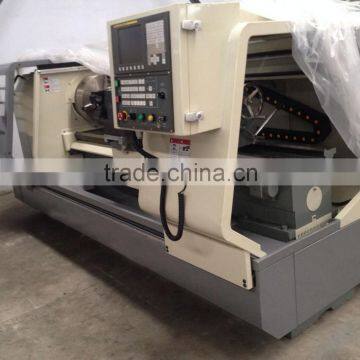

CNC Pipe Thread Lathe Spindle Bore 130mm with CE

FOB Price

USD $35,000 - $90,400 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	520mm	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	QK1313ax1000 QK1313ax1500
Voltage	7.5kW	Power(W)	3Ph 220V/380V/415V/440V/480V 50/60Hz
Certification	CE Certificate; ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

CNC Pipe Thread Lathe

For detailed information, to: export(at)

Specifications	Unit	Parameter
Max. swing over bed	mm	520
Width of the bed	mm	420
Spindle bore diameter	mm	132
Tube outside diameter	mm	30~126
Center distance	mm	1000/1500
Max. swing over crossslide	mm	280
Spindle taper		140/1: 20 (C11 )
Range of spindle speed	r/min	20~800
Power of main motor	KW	7.5
Chuck OD/ ID	mm	400/130
Three-jaw chuck	mm	K11-400D
Distance between two chucks	mm	1450
Inch thread range and number of species(thread per inch)		0.1~254
Metric thread range and number of species	mm	0.1~300
X axis/Z axis max. travel	mm	320/1500
X axis/Z axis travel speed	m/min	3~5/ 4~6
X axis/Z axis min. travel unit	mm	0.001
X axis/Z axis repeatability accuracy	mm	0.016/0.020
Tailstock sleeve diameter	mm	75
Tailstock sleeve taper		MS 5#
Sleeve travel	mm	170
Arbor cross-section size	mm	25×25
4-station Electric tool post		SLD10204W square turret: 190×190mm
Overall dimensions(L×W×H)	mm	3400×1600×1900
Grosswet weight	t	3.4/3.2
