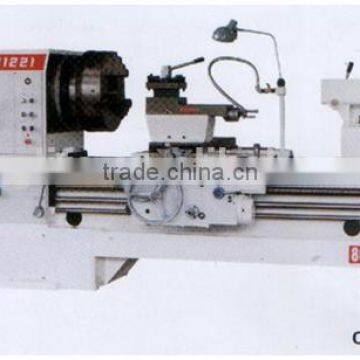

Q1221x2000 oil country large spindle bore pipe threading lathe machine

FOB Price

USD $38,500 - $39,923 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	Normal	Automatic Grade	Manual
Max. Swing Diameter	840mm	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	Q1221x2000 pipe threading lathe machine
Voltage	Customer's Requirement	Power(W)	11kW
Dimension(LWH)	3515x1600x1800mm	Weight	4300kgs
Certification	ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

Q1221x2000 pipe threading lathe machine

Main Usage

1. I.D. & O.D. cylindrical turning,

2. end face turning,

3. I.D. & O.D. cone turning,

4. grooving,

5. threading;

Main Features

Such pipe threading lathe machine has following features:

Q1221 pipe-threading lathe is a high-efficiency and precision manual lathe.

It can be used in machining all kinds of pipe fittings.

It can machine many kinds pipe threads, also can machine the taper threads with the taper attachment and the support.

The integral bed ensuring the rigidity of the lathe and the guide-ways are medium-frequency hardened to ensure the long working life.

The spindle applies the double-chuck structure.

Main Technical Data

Specifications	Unit	Parameter
Max. swing over bed	mm	840
Max. outer diameter of pipe	mm	210
Max. swing over carriage	mm	560
Max. length of work piece	mm	2000
Max. turning length	mm	1850
Diameter of spindle inner hole	mm	210
Taper of spindle bore	mm	225
Range of spindle speed	r.p.m.	45 ~ 572 with 12 steps
Taper of center sleeve		MT6
Range of longitudinal feed	mm/r	0.1~1.5 with 32 kinds
Range of transverse feed	mm/r	0.5 with 32 kinds
Pitch of leadscrew	mm	12
Range of metrical thread	mm	1~15 with 22 kinds
Range of inch tread	TPI	15~1 with 28 kinds
Range of modular thread	mm	0.5 ~ 7.5 15~1 with 21 kinds
Range of pitch thread	D.P.	28~2 with 20 kinds
Tool post		With 4 way
Tool section ( H×W )	mm	45×45
Max. travel of tool post	mm	240
Max. travel of cross slide	mm	500
Double-speed motor power	kW	9/11
Double-speed motor speed	r/min	1000/1500
Rapid-travel motor power	kW	1.1
Rapid-travel motor speed	r/min	1350
Cooling pump power	kW	0.125
Cooling pump flow	L/min	22
Diameter of tailstock sleeve	mm	100
Taper for taper hole of tailstock sleeve		MT6
Travel of tailstock sleeve	mm	300
Net weight of machine	kg	4300
Net dimension of machine	mm	3515x1600x1800

Free Std Accessories

Name	Size	Remark
3-jaw manual chuck	dia. of 500 mm	2 sets
Steady rest	range 25 to 200 mm	1 set
Follow rest	Range 30 to 220 mm	1 set
Cooling system		1 set
Lighting device		1 set
Taper turning device	length 300 mm	1 set
Dead center		1 piece
Center sleeve		1piece
Set of machine operating tools		1 set
