BY5063E hydraulic slotting machine with 630mm slotting length
- 100 Set / Sets per Month
- Dalian/Tianjing/Shanghai/Qingdao China
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Liaoning, China | |
| Brand Name | LFM | Model Number | BY5063E hydraulic slotting machine | |
| Voltage | Customer Requireme | Power(W) | 11kW | |
| Dimension(L*W*H) | 3730x2350x4587mm | Weight | 12000kgs | |
| Certification | CE; ISO9001:2008; GB/T19001:2008; | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

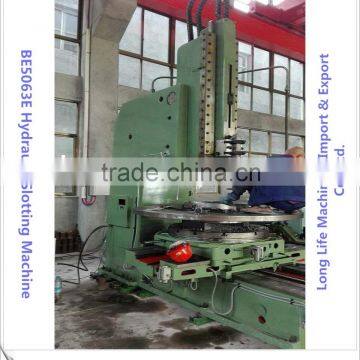

BY5063E hydraulic slotting machine
Such slotting machine has following features:
1. Hydraluc type;
2. Being designed for cutting various plane, Formed surface and key of workpiece, the machine is suitable for single piece or small Batch production.
3. The start and stop of the machine are carried out by a multiple-disk clutch and the reciprocation of the tam is achieved by a crank connecting link.
4. An auto- matic mechanism for vertical, horizontal and rotary feeding and rotary motion of the table which is equipped with an indexing gear for rotary motion.
Name | Unit | Parameter |
Flatness of machined surface on tested work piece | mm | 0.015 |
Verticality of machined surface on tested work piece | mm | 0.025 |
Surface roughness on tested work piece | mm |
|
Verticality of machined side surface on tested work piece against base | mm | 0.020 |
Specifications | Unit | BY5063E |
Max. stroke length of ram | mm | 630 |
Min. stroke length of ram | mm | 125 |
Max. slotting length | mm | 630 |
Adjusting vertical distance of ram | mm | 550 |
Max. speed of ram working stroke | m/min | 22 |
Min. speed of ram working stroke | m/min | 5 |
Speed ratio of working stroke and return stroke of ram |
| 1:1.45 |
Speed adjustment of ram working stroke |
| stepless |
Max. slotting force | KN | 19.6 |
Distance from tool support surface to column front | mm | 1189 |
Distance from worktable surface to underside of slide rack | mm | 880 |
Max. longitudinal travel of worktable | mm | 1125 |
Max. transverse travel of worktable | mm | 880 |
Diameter of worktable | mm | 1000 |
Inclination of ram | ° | 0~10 |
Range of longitudinal feed(stepless) | mm | 0~0.6 |
Range of transverse feed(stepless) | mm | 0~1.36 |
Range of rotary feed(stepless) | ° | 0~1°15’’ |
Max. load capacity of worktable | kgs | 2000 |
Power supply of main electric motor | kW | 11 |
Speed of main motor | r/min | 960 |
Power of motor for rapid traverse | kW | 1.5 |
Speed of motor for rapid traverse | r/min | 940 |
Type of motor for cooling pump |
| DB-12B 40W |
Net weight(approx) | kg | 12000 |
Dimensions of machine tool | mm | 3730x2350x4587 |
