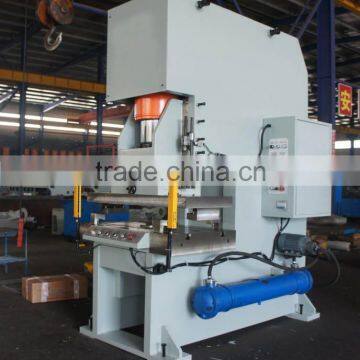

Y27Y-100T Hydraulic Press Machine with CE

FOB Price

USD $17,142 - $17,142 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Power Source	Hydraulic	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	Y27Y-100T
Voltage	110V,220V,380V,410V 50/60Hz	Power(W)	7.5kW
Weight	5000kgs	Dimension(LWH)	1350x1630x2500mm
Certification	CE, ISO9001	Warranty	12 months after delivery
After-sales Service Provided	Engineers available to service machinery overseas

Y27Y-100T Hydraulic Fast Press Machine

Main Usage:

Mainly used for punching, stretching and pressing of plastic materials, sheet metal and so on;
Also be used for calibration, press-in, forming of grinding wheel, press forming of plastic products and powder products.

Characteristics of the machine:

The machine uses hydraulic driving mode and has the advantages of a hydraulic press and a mechanical press.
Pressing force of the machine can be changed at will.
Overload will not occur in the machine.
It can realize pressure keeping and time delay requirements in during pressing.
In order to realize slippers quick moving downwards without load and quick back stroke, the machine uses speeding-up oil cylinders.
The machine began to operate automatically at a slow speed as it contracts a workpiece, which decreases discharge capacity of an oil pump and motor power, and reduces noise.
Photoelectric protection devices may be installed in front of a bench, which forms a protection screen on upper front of the bench so as to protect operators.
It uses centralized buttons, which may realize adjustment, semi-automatic and automatic operations.
Therefore, the machine has the advantages of novel structure, reliable performance, a complete range of functions and high production efficiency of, and it is a substituting product of a mechanical press.

Specifications	Unit	Parameter
Nominal Pressure	KN	1000
Max. Work Pressure Liquid	mpa	22.5
Slipper Max. Stroke	mm	180
Slipper Work Times	1/min	10~40
Max. Closing Height	mm	470
Stroke Adjuster	mm	180
Throat Depth	mm	310
Height from Bench to Ground	mm	770
Speed to Quickly Move downwards	mm/s	220
Work Speed	mm/s	14
Back Stroke Speed	mm/s	96
Slipper Underside Size	mm	Left and Right: 500 Front and Back: 350 Die Hole: Φ60
Bench Size	mm	Left and Right:850 Front and Back: 600 Aperture: Φ180
Machine Dimension	mm	Left and Right:1350 Front and Back: 1630 Height: 2500
Motor Power	KW	7.5/6
Oil Pump	ml/r	40
N.W/G.W	kg	5000/5800
Packing size	mm	2850×1700×1950
