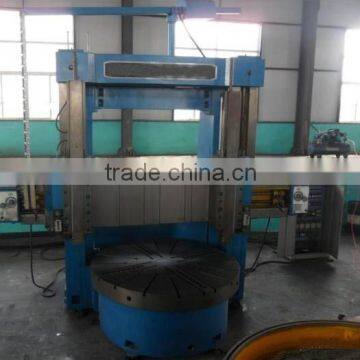

CK5225 CE double column cnc vertical turning lathe Quality Choice

FOB Price

USD $180,385 - $183,185 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Vertical
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	2500mm	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	CK5225 cnc vertical lathe
Voltage	220V/380V/415V/440V/480V 50/60Hz	Power(W)	55kW
Dimension(LWH)	depends	Weight	38 tons
Certification	CE; ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

CK5225 Large CNC Vertical Lathe Technical Data

Short Summary

The CNC vertical lathe is of excellent performance, a wide range of technology, high productivity.
Based on referring to the advanced machine design and manufacturing technology, adopting the newest design philosophy, and combining the profound corporate culture, our company has developed a kind of delicate machine tools with mechatronics and hydraulics integration, and provided the world-class products for overseas and domestic customers.
To make the lathe with high turning precision and enough rigidity and intensity, the table adopts integral casting and thermal symmetric structure, the main shaft bearing is the high-precision double row cylindrical roller bearing, and the table guideway;
CNC controllers: Fanuc, Siemens, GSK and so on;

Main Technical Data

Specifications	Unit	Parameter
Max. turning diameter of railhead	mm	2500
Table diameter	mm	2250
Max. working height of workpiece	mm	1600/2000
Max. weight of workpiece	T	10
Sectional size of tool bar	mm	40×40
Max. cutting resistance of tool post	KN	32
Max. torque of table	KN.m	63
Speed range of table	r/min	2.5~80
Feed range of tool post	mm/min	0.1~2000
Rapid traveling speed of tool post	mm/min	3000
Travel of tool post Horizontal	mm	-20~1500
Travel of tool post Vertical	mm	1000
Table guide		Hydrostatic
Max. travel of crossbeam		1250/1650
Speed of going up and down of crossbeam	mm/min	350
Sectional size of ram	mm	200×255
Controller		Siemens 802DSL or Optional
Position accuracy	mm	Test and evaluate accuracy according to GB/T17421.2-2000
Positional accuracy	mm	X, Z: 0.03/1000
Repeatable positional accuracy	mm	X,Z: 0.015/1000
Reverse positional accuracy	mm	X/Z: 0.010/1000
Temperature range	°	0~40
Ambient thumidity		≤85%
Power supply and voltage		380V±10%
Power of main motor	KW	DC55

Factory Overview

kinds of colors for your choice/can be customized
