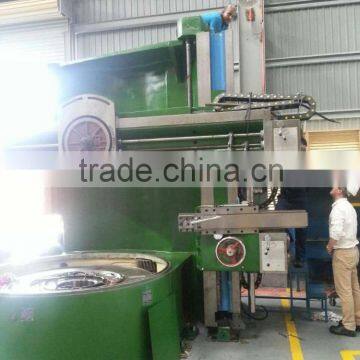

C5125 CE conventional single column vertical lathe machine

FOB Price

US$ 70,000 - 70,583 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Vertical
CNC or Not	Normal	Automatic Grade	Manual
Max. Swing Diameter	2500mm	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	C5125 single column vertical lathe
Voltage	220V/380V/415V/440V/480V	Power(W)	30 kW
Dimension(LWH)	3380x3360x4000mm	Weight	26 tons
Certification	CE; ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

C5125 single column vertical lathe Technical Data

Main Usage

1.I.D. & O.D. cylindrical turning,

2. end-facing,

3. I.D. & O.D. cone turning,

4. grooving,

5. boring, drilling, reaming, etc.

Main Featurers

Main Technical Data

Specifications	Unit	C5125 single column vertical lathe
Max. turning diameter of railhead	mm	2500
Max. working height	mm	Standard: 1350
Max. weight of workpiece	T	10
Table diameter	mm	2250
Speed range of table	r/min	2~62
Speed-step of table		16
Max. torque of table	KN.m	32
Max. cutting resistance of railhead	KN	25
Max. cutting resistance of sidehead	KN	20
Total cutting resistance	KN	40
Travel of railhead (Horizontal)	mm	1360
Travel of railhead (Vertical)	mm	800
Travel of crossbeam	mm	950
Feeding range of railhead	mm/min	0.8~86
Moving degrees limit of railhead		±30°
Cutting section of tool bar (W×H)	mm	30×40
Power of feeding motor	KW	1.3/1.8
Power of main motor (AC)	KW	30
Overall dimensions (L×W×H)	mm	3380x3360x4000
Weight of machine	T	26

Main Purchased parts

Name	Manufacturer	Remark
Main motor	Dandong huanghai motor co.,ltd.
DRO	Rational precision instrument co.,ltd.
Electrical elements	Tainshui 213 electrical apparatus co.,ltd.
Hydraulic elements	Nantong tongfu hydraulic pressure co.,ltd.
Solenoid Valve	Yuken	Japan
Bearing	Wafangdian bearing group corp.
Spiral gear/Spline shaft	Qiqihaer hongyun machine tools
Worm gear/ screw	Fuxin thai red hydraulic screw manufacturing co.,ltd.
Table rail plate	Wuhu chengxin xinhejin co.,ltd.
Gear in gearbox	SMTCL

Factory Overview

kinds of colors for your choice/can be customized
