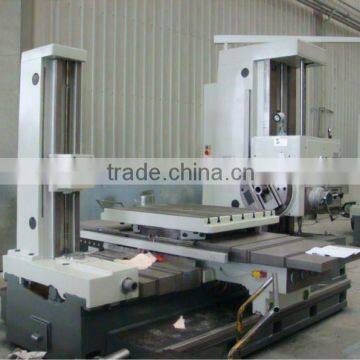

Manual Horizontal Boring Machine Hot-sale TPX6111
- Dalian China
- T/T Credit Card PayPal
You May Like
-
TPX Manual Horizontal Boring Machine
-
TPX Horizontal Boring Machine with DRO
-
TPX6113 Series Horizontal Boring Machine/Milling Machine
-
TPX6113 manual horizontal boring and horizontal milling machine
-
TPX6113A Manual horizontal boring and milling Machine
-
TPX6111 Series horizontal boring machine for sale
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Place of Origin | Liaoning, China | Brand Name | DALIAN | |
| Model Number | TPX6111 TPX6111A TPX6111A/2 TPX6113 TPX6113A TPX6113A/2 TPX6113A/3 | Voltage | 220V 380V 400V 415V 440V 480V | |
| Certification | ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Horizontal Manual Type;Spindle bore diameter: 110/130mm;
With DRO for X/Z axies;
Boring and Milling Machine Machine
to: export(at)
Boring Machine:
1. TPX61 series digital readout horizontal boring and milling machines are universal machine tools which can be adapted to machine casting, steel, and nonferrous word- places.
2. Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes.
3. The faceplate slide can be fed radically, which enables the machine to bore large size holes, turning outside diameters, and grooving.
4. This series of machine can be used in the industries of energy, metallurgy, mining, machinery, military, etc it is a reliable choice for machining box- type part.
5. Spindle of better rigidity, stronger cutting force, higher efficiency.
7. Optical sensor available for higher table locating accuracy
8. DRO available for both X and Z axes;
9. Automatic tool loading and unloading available as optional with spindle of ISO7:24 at 50 taper;
Specifications | Unit | TPX6111 | TPX6111A | TPX6111A/2 | TPX6113 | TPX6113A | TPX6113A/2 | TPX6113A/3 |
Spindle bore diameter | mm | Φ110 | Φ110 | Φ110 | Φ130 | Φ130 | Φ130 | Φ130 |
Spindle taper | MT | 6 | 6 | 6 | 80# | 80# | 80# | 80# |
Max, spindle torque | Nm | 1225 | 1225 | 1225 | 3136 | 3136 | 3136 | 3136 |
Max. spindle axial thrust | N | 12250 | 12250 | 12250 | 31360 | 31360 | 31360 | 31360 |
Steps of spindle speed |
| 22 | 22 | 22 | 24 | 24 | 24 | 24 |
Range of spindle speed | r/min | 8~1000 | 8~1000 | 8~1000 | 4~800 | 4~800 | 4~800 | 4~800 |
Power of main motor | kW | 7.5 | 7.5 | 7.5 | 15 | 15 | 15 | 15 |
Max. facing head torque | Nm | 1960 | 1960 | 1960 | 4900 | 4900 | 4900 | 4900 |
Facing head diameter | mm | Φ600 | Φ600 | Φ600 | Φ750 | Φ750 | Φ750 | Φ750 |
Range of facing head speed | r/min | 4~200 | 4~200 | 4~200 | 2.5~125 | 2.5~125 | 2.5~125 | 2.5~125 |
Speed step of facing head | steps | 18 | 18 | 19 | 18 | 18 | 18 | 18 |
Table size | mm | 1140 x1000 | 1140 x1000 | 1300 x1250 | 1600 x1400 | 1600 x1400 | 1800 x1600 | 1800 x1600 |
