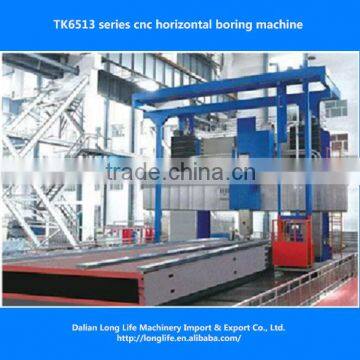

TK6513 Series cnc horizontal boring machine for sale

FOB Price

US$ 541,000 - 545,878 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Production Capacity	spindle	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	TK6513 cnc horizontal boring machine
Voltage	220V/380V/400V/415V/440V/480V	Power(W)	22 kW
Dimension(LWH)	depends	Weight	11 tons
Certification	ISO9001:2008; GB/T19001:2008;	After-sales Service Provided	Engineers available to service machinery overseas

TK6513 cnc horizontal boring and milling Machine

Main Features

Such cnc horizontal boring and milling machine has following features:

1. horizontal boring and milling machines are universal machine tools which can be adapted to machine casting, steel, and nonferrous word- places.

2. Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes.

3. CE Standard and CE Certificate;

Main Technical Data

Specifications	Unit	Parameter
Rotary worktable size	mm	2000×2000
Max.load capacity	kg	10000
T-slot (Numbers * Width * Distance) (b / t slots)	mm	18×100×5
Table load Max	kg	10000
Spindle-box travel(Y-axis)	mm	2000
Spindle travel(Z-axis)	mm	700
Square ram travel(U-axis)	mm	900
Rotary worktable travel(V-axis)		360°
Dia.of spindle	mm	130
Spindle taper		BT50
Spindle speed rage	r/min	20~1200
Spindle motor power	kW	11~22
Linear guideway		HIWIN
Bearing		NSK
Positioning accuracy		±0.01/300
Weight of machine	kg	11000
CNC system		Fagor 8055

FAQ

Payment Term:

1. 30% down payment, 70% by T/T before shipment;

2. 100% LC at sight(optional and shall be discussed before placing order);

Minimum Order Quantity:

1. 1 Set;

2. ≥2 sets, there will be much discounts.

Warranty:

1. Normally, 12 months for parts as of delivery of the machines;

Shipment:

1. For machine itself, by sea or train(inland countries).

2. For documents, by international express. eg DHL, TNT or EMS.
