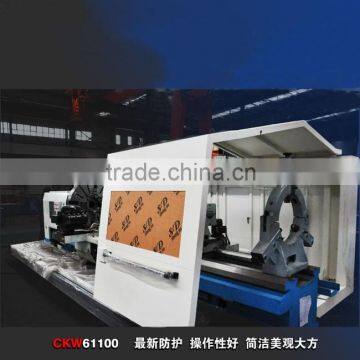

CK61100 Series CNC Horizontal Lathe with 6 Tons Load Capacity

FOB Price

US$ 159,017 - 509,394 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	1000mm	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	CK61100(1000 swing x3000~8000mm)
Voltage	220V 380V 400V 415V 440V 480V	Certification	CE;ISO9001:2008; GB/T19001:2008
After-sales Service Provided	Engineers available to service machinery overseas

CK61100 Technical Parameters

Main Features:

Specifications	Unit	Parameter
Swing over bed	mm	φ1000
Swing over carriage	mm	φ650
Between distance	mm	2000/3000/4000/6000/8000/10000
Dia. Of chuck	mm	φ1000
Cutting length	mm	1800
Width of bed	mm	755
Support capacity between centers (with steady rest)	kg	6000
Support capacity between centers (between 2 core)	kg	2000
Spindle hole through	mm	φ130
Spindle nose		A2-15
Spindle taper	mm	Metric No. 140
Spindle speed	rpm	3.15~ 315 with 4 steps
Ball screws in X-Axis		Star brand of Germany
Rack in Z-Axis		By Germany
Gear box in Z-Axis		By France
Turret made by China		4-positions, vertical type
Size of tool holder	mm	32×32
Travel of X-Axis	mm	610
Travel of Z-Axis	mm	1800
Feeding speed of X-Axis & Z-Axis	mm/min.	X: 0.1 ~ 2000 Z: 0.1 ~ 2000
Rapid traverse of X-Axis & Z-Axis	mm/min.	X: 4000 Z: 6000
Positioning accuracy	mm	X: 0.030 Z: 0.050
Vertical 4-position Tool post changing time	s	4.0
Travel of tailstock quill	mm	300
Diameter of tailstock quill		φ160
Taper hole of tailstock sleeve		Metric No. 80
Rapid speed of tailstock	mm/min	3000
Controller		SEIMENS 802 DSL
Servo motor	Nm	30 ( for X-Axis) 38 ( for Z-Axis)
power of main servo motor	kW	22
Adjusting speed device of main motor		YASAKAWA OF JAPAN
Electrical power		380V - 3phase 50Hz
Net dimension of the machine	mm	7700×1900×2000
Packing dimension of the machine	mm	1) 5360×2500×2280 2) 2030×1110×1220
N. W./ G. W.	kg	10,000/ 1) 7,500 2) 5,500
