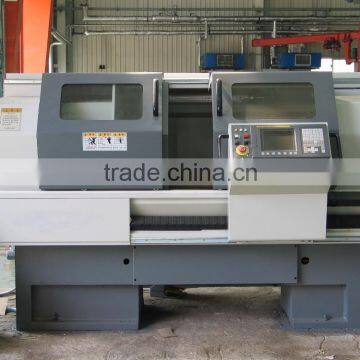

Small sized CNC Flat Bed Lathe with CE

FOB Price

USD $9,717 - $25,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	400mm	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	CKE6130i CKE6136 CKE6140
Voltage	3Phx220V 380V 400V 415V 440V 480V, 50/60Hz	Power(W)	7.5kW
Certification	CE Certificate; ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

CNC Horizontal Lathe Machine

Main Featurers:

Construction casting molded with resin sand of bed, headstock, saddle plinth, etc
Turcite-B coated on mating surfaces between saddle and guide ways
Precision ballscrew, high rigidity precision compound bearings ensure accurate positioning and efficient driving. Centralized oil lubricator providing forced automatic lubrication onto ballscrew, mating surfaces
High spindle speed with wide variable speed ranges. Low noise 80db,CKE-Zseries machine adopting the smart automatic gear changing mechanism enables automatic speed changes among low,medium,high speed ranges without turning off the
Machine.CKE-i series with independent spindle structure and frequency converted motor or servo motor enables high spindle speed and stepless spindle changing.
Flexible control panel enables convenient tool setting.
Popular full enclosed guards with interlock offer a waterproof and chip-free environment.
Vertical 4-p toolpost,horizontal 6-p toolpost,quick change toolpost,etc are available for your selection

Item	CKE6130i	CKE6136Z	CKE6140Z
Max. swing over bed(mm)	300	360	400
Width of bed (mm)	205	300	300
Max. length of work piece (mm)	600	750~1000	750~1000
Max. swing over slide(mm)	145	180	200
X travel (mm)	190	205	225
Z travel (mm)	550	620~870	620~870
Spindle nose	A2-5	A2-6/D6	A2-6/D6
Chuck size (mm)	165	200	200
Taper of spindle bore	M5	M6	M6
Spindle bore (mm)	40	52	52
Steps of spindle speed	step less	2-step actuator	2-step actuator
Frequency conversion motor power (kW)	4.0	5.5	5.5
Rapid traverse X/Z (m/min)	4/5	4/5	4/5
Vertical 4-position Tool post changing time (s)	2.1	2.4	2.4
Horizontal 6-position Tool post changing time(s)	2.8	3.0	3.0
Diameter of tailstock quill (mm)	42	63	63
Travel of tailstock quill (mm)	110	130	130
Taper of tailstock quill	M3	M4	M4
