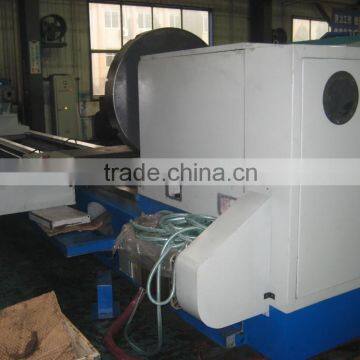

CK61160 Series 8 Tons Load Capacity CNC Heavy Lathe

FOB Price

USD $26,000 - $89,394 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	1600mm	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	CK61140(swing 1600mmx2000~8000mm)
Voltage	3Phx220V 380V 400V 415V 440V 480V, 50/60Hz	Certification	CE Certificate; ISO9001:2008; GB/T19001:2008
After-sales Service Provided	Engineers available to service machinery overseas

CK61160E CNC Flat Bed Lathe Technical Data

Main Features

l All main components, bed, headstock, saddle, plinth, etc., are high quality solid castings;

l Low friction turcite-B coating on mating surfaces between saddle and guide ways;

l Precision ballscrews and highly rigid precision bearings ensure accurate positioning and heavy cutting capability;

l Centralized system provides forced automatic lubrication onto ballscrews and all mating surfaces;

l Operator adjustable control panel enables convenient tool setting;

l FANUC, SIEMENS, FAGOR, etc control systems can be supplied. E-handwheel function is also available.

Specifications	Unit	Parameter
Swing over bed	mm	1600
Swing over carriage	mm	1280
Between distance	mm	2000/4000/6000/8000/10000
Dia. Of chuck	mm	1400
Width of bed	mm	970
Max. Loading weight of work piece	T	8
Spindle hole through	mm	130
Spindle nose		ISO A2-15
Spindle taper	mm	Metric No. 140
Spindle speeds	rpm	3.15~ 315 Manual 21 gears/ automatic 4 gears, infinitely variable speeds within the gear
Turret		4 positions, vertical type
Size of tool holder	mm	40×40
Travel of X-Axis	mm	740
Travel of Z-Axis	mm	1800/3800/5800/7800/9800
Feeding speed of X-Axis & Z-Axis	mm/min.	X: 1~ 2,000 Z: 1~ 2,000
Rapid traverse of X-Axis & Z-Axis	mm/min	X: 4000 Z: 6000
Travel of tailstock quill	mm	300
Taper of tailstock quill		Metric No. 80
Rapid speed of tailstock	mm/min	3000
Controller		FANUC 0i -T
Servo motor	Nm	30 ( for X-Axis) 40 ( for Z-Axis)
power of main servo motor	kW	AC 22
Adjusting speed device of main motor		YASAKAWA OF JAPAN, F7
Electrical power
Net dimension of the machine	mm
Packing dimension of the machine	mm
N. W./ G. W.	kg

Free Standard Accessories

Name	Size	Note
4 - jaws chuck	1400 mm	1 Set
Turret	4-positions	1 Set
Steady rest	220 ~ 630 mm	1 Set
Fixed core clamper		1 Set
Activity core clamper		1 Set
Center sleeve		1 Set
Coolant system		1 Set
Work light		1 Set
Automatic lubrication system		1 Set
Vale for Hydraulic unit from Rexroth of Germany		1 Set
Bolts and Balancing level blocks for foundation		1 Set
Turret Protection		1 Set
Chuck Protection		1 Set
Special tools		1 Set
