Home > Products > CNC Flat Bed Lathe > CKE6130i/Z Smallest flat bed cnc lathe machine for sale

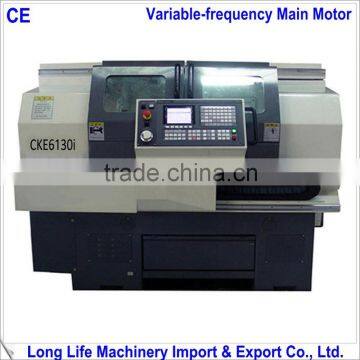

CKE6130i/Z Smallest flat bed cnc lathe machine for sale

FOB Price

USD $9,953 - $27,316 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Dalian/Tianjing/Shanghai/Qingdao China
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	300mm	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	CKE6130i/Z flat bed cnc lathe machine
Voltage	220V 380V 400V 415V 440V 480V	Power(W)	4.0kW
Dimension(LWH)	1790x1520x1450mm	Weight	1000kgs
Certification	ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

CKE6130i/Zsmallest flat bed cnc lathe

Main Features

Such cnc lathe machine has following features:

Variable-frequency/servo main motor, X/Z axis servo motor, automatic 2 gears, infinitely variable speeds within the gear, Spindle Speed: 20~2500rpm, 4-position electric turret, Spindle bore: 52 mm, Bed Width: 300mm, 165 mm manual 3-jaw chuck, manual tailstock;

Main Technical Data

Specifications	Unit	Parameter
Max. swing over bed	mm	300
Width of bed	mm	205
Max. length of work piece	mm	600
Max. swing over slide	mm	145
X travel	mm	190
Z travel	mm	550
Spindle nose		A2-5
Chuck size	mm	165
Taper of spindle bore	Morse	M5
Spindle bore	mm	40
Frequency conversion motor power	kW	4.0
Rapid traverse X/Z	m/min	4/5
Positioning accuracy	mm	X: 0.030 Z:0.040
Repeat positioning accuracy	mm	X: 0.012 Z:0.016
Vertical 4-position Tool post changing time	s	2.1
Horizontal 6-position Tool post changing time	s	2.8
Diameter of tailstock quill	mm	42
Travel of tailstock quill	mm	110
Taper of tailstock quill	Morse	M3
Net weight	kg	1000
Overall dimensions	mm	1790×1520×1450
