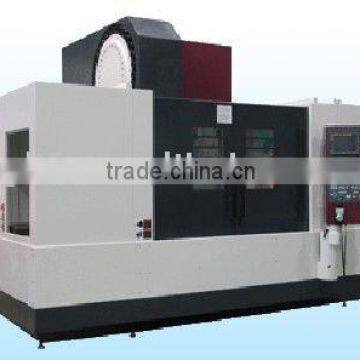

MDV 55 high speed china cnc vertical machining menter
- 100 Set / Sets per Month
- Dalian China
- T/T Credit Card PayPal
You May Like
-
CNC Gantry Machining Center
-
VDL Series Machining Center Hot-sale VDL600 for Light Machining
-
CE VDF Series BOX GUIDE WAY Vertical Machining Center
-
VDL500 Small CE china cnc vertical machining center
-
CE Certificate Box-Way Vertical Machining Center
-
VDF1800 sliding guide way cnc vertical machining center with CE
Product Details
| Condition | New | Type | Vertical | |
| Place of Origin | Liaoning, China | Brand Name | DALIAN | |
| Model Number | MDV55 cnc vertical machining menter | Voltage | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz | |
| Power(W) | 11/15kW | Dimension(L*W*H) | depends | |
| Weight | 7500kgs | Certification | CE and ISO9001 | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
VDF55 hihg speed cnc vertical machining center Parameter
l Full - enclosed protective cover, XYZ track slip surface protection, and protection of steel, cutting oil installations(Cutting Oil separating tank)
l Work lights spindle lubricating oil temperature adjusting device, rear - mounted spiral chip removal device on each one, the level of alignment component
l Mechanical handling parts, automatic cut - off devices, electrical spare fuse
l FANUC 18 I control system of 10.4'' color LCD displays, auto power off function, memory length of 160 M procedures, electric leakage protection device
l Electric heat exchanger equipped with 20 disc type tool changer, and silver HIWIN Ball screws
l MDV55 configure the original Japanese OKK spindle -8000rpm gear spindle 117.5KW 25, MDV75 configuration IBAG
l 25~6000rpm gear spindle 17.5KW
l When exporting countries and regions need different when transformer no further charges.
l Standard accessories:
l Iron gasket for Machine Tool and Tool box wrenches, basic installation instructions, maintenance manuals and electrical manual NC system information;
l CE Certificate is provided;
l High-prision spindle and high spindle speed: 6000~13000rpm;
Specifications | Unit | Parameter |
Table(L×W) | mm | 1050×560 |
T-slot(Numbers×Width×Distance)(b/t slots) | mm | 18×100×5 |
Table load Max | kg | 800 |
The distance from spindle center line to column guide way surface | mm | 615 |
The distance from spindle nose end face to table upper surface | mm | 150~660 |
X/Y/Z travel | mm | 1020/550/510 |
X/Y/Z guide way type |
| Sliding Guide way |
X/Y/Z rapid traverse speed | m/min | 30/30/20 |
Feed rate | mm/min | 1~10000 |
X/Y/Z servo motor power | Nm | 3.0/3.0/4.0 |
Positioning accuracy | mm | ±0.003(JIS),0.008(VDI) |
Repeat positioning accuracy | mm | ±0.002(JIS),0.004(VDI) |
Spindle motor power | kW | 7.5/11(SPECIAL:11/15) |
Spindle speed range | r/min | 6000(Second level gear speed)(Special:8000rpm(Second level gear speed,13000rpm MS) |
Spindle taper |
| MT 50 |
Tool magazine capacity/Type |
| 20(Special:30) |
Tool adaptor type |
| JISB6339 50T |
Max. Tool weight | kg | 20 |
Max. Tool diameter/length | mm | Φ110 (30Drum:Φ103)/350 |
Time of tool change(T-T) | sec | (T-T), 5.9 (C-C) Speed as per the tool weight |
Air pressure requirement | MPa | 0.4~0.6 |
Net weight | kg | 7500 |
Machine height | kg | 2846 |
Machine covers an area of size | mm |
|
