CE Box-way Vertical Machining Center Hot-sale VDF1500

FOB Price

US$ 45,132 - 108,060 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Vertical
Place of Origin	Liaoning, China	Brand Name	DALIAN
Model Number	VDF1000 VDF1200 VDF1500 VDF1800	Voltage	3Ph 220V/380V/415V/440V/480V 50/60Hz
Certification	CE; ISO9001:2008; GB/T19001:2008	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

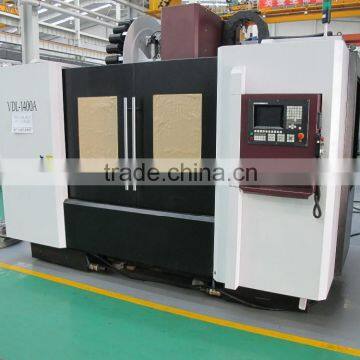

Vertical Machining Center with Box Way

to:export(at)

Main Features:

With CE Certificate;
The basic parts, including in machine floor, column, spindle box, cross slide and work-table, are casted with high rigidity cast-iron, so that guarantees s stable structure and ever high quality.
The P4 precision angular contact bearing is applied to spindle assembled in constant house temperature environment, which guarantees the stability and high machining precision.
X, Y, Z axes are all equipped with high-precision ballscrews;
Disk-type tool magazine with the capacity of holding 24 BT40 tools simultaneously, which is powered by electric motor and operates quickly and stably.
The machine is equipped with full-guard and good-looking, waterproof, safe and also environment-friendly.
The control system is employed FANUC Oi-M control system and completely digital AC Servo Unit supported by powerful software that supports the RS232 serial interface.

Item	VDF1000	VDF1200	VDF1500	VDF1800
Table(L×W)(mm)	1120×560	1220×620	1700×800	2000×800
T-slot(Numbers × Width × Distance) (b/t slots)	5×18×100	5×18×100	6×18×125
Table load Max(kg)	750	1200	2500
The distance from spindle center line to column guide way surface(mm)	629	660	850
The distance from spindle nose end face to table upper surface(mm)	135-735	90-765	200-962	180-942
X/Y/Z travel(mm)	1020/560/600	1200/600/675	1530/800/762	1850/800/762
X/Y/Z guide way type	box way	box way Y-axis 4 rails	box way Y-axis 4 rails
X/Y/Z rapid traverse speed(m/min)	24/24/18	20/20/18	15/15/12
Feedrate (mm/min)	1-10000	1-10000	1-6000
X/Y/Z servo motor power(Nm)	12/12/12	22/22/22	22/22/22
Spindle motor power(kW)	7.5/11	11/15	11/15 wide range motor
Spindle speed range(r/min)	60-8000	45-6000	45-6000
Spindle taper	#40(7/24)	#50(7/24)	#50(7/24)
Tool magazine capacity/Type	20/drum 24/swingarm	24/swing arm	24/swing arm
Tool adaptor type	BT40	BT50	BT50
Max. Tool weight(kg)	7	15	15
Max. Tool diameter/length(mm)	77/305 swing arm	127/305 swing arm	110/350swingarm
Time of tool change(T-T)(sec)	6-8/3	3.5	3.5
Air pressure requirement (mPa)	0.6	0.6	0.6
Power requirement (kW)	25	35	40
Overall dimension(L×W×H)	2820×2820×2477	2880×2815×2791	4300×3480×3120	5160×3480×3120
Net weight (kg)	8000	8500	14000	14500
