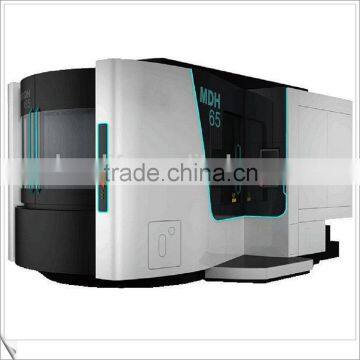

MDH65 OKK high class cnc horizontal machining center for sale
- Dalian/Tianjing/Shanghai/Qingdao China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
CE Certified Linear Guide Way Vertical Machining Center
-
MDV Series High-speed Machining Center
-
Catalogue of Linear Way and Box Way Vertical Machining Center with CE
-
VDL1300 CE Certified Linear Way and Box Way Vertical Machining Center
-
VDL800/1000 Mid-sized Linear Way cnc vertical machining center
-
VDL500/600 smaller hot sale cnc vertical machining center
Product Details
| Condition | New | Type | Horizontal | |
| Place of Origin | Liaoning, China | Brand Name | DALIAN | |
| Model Number | MDH65 horizontal machining center | Voltage | Customized | |
| Power(W) | 22kW | Dimension(L*W*H) | 3420x5450x2700mm | |
| Weight | 18 tons | Certification | CE; ISO9001:2008; GB/T19001:2008 | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
MDH65 cnc horizontal machining center
1. MDH Series is the ideal machining center for producing box-type and irregular work pieces for automobile, shipbuilding, engine and general manufacturing industries.
2. The machine is a high-performance, high-reliability and high-precision product characterized by compact configuration and rapid response rates.
3. The spindle design makes it particularly suitable for heavy power cutting while the excellent ball screw and spindle cooling system provide superb capability for flexible manufacturing.
4. High-speed High-power Spindle;
5. Compact Configuration and Unrivaled rigidity;
6. High-speed ATC;
7. High-speed APC
8. CE Standard and CE Certificate;
Specifications | Unit | Parameter |
Table size | mm | 630×630 |
Table top to spindle center distance | mm | 80~980 |
Table center to spindle front-end distance | mm | 200~1100 |
Maximum table load | kg | 1300 |
Table indexing |
| 1°×360° |
Tool storage capacity
|
| 40(OP:60/80/120/160) |
Time of tool change
| s | 2(T-T),4.2(C-C) |
Maximum tool weight
| kg | 25 |
Maximum tool diameter
| mm | Φ115(Adjacent empty:Φ270) |
Maximum tool length
| mm | 500 |
Table indexing time | S | 1.7 (90°) |
Coordinate travel (X/Y/Z) | mm | 1050/900/900 |
Fast moving speed | m/min | 45(OP:54) |
Spindle speed | rpm | 35-8000 (OP:35-12000) |
Spindle speed gears |
| 2(MS) |
Spindle internal taper |
| 7/24 No.50 |
Spindle diameter | mm | Φ100 |
knife handle form |
| JISB6339 50T |
Rivets form |
| MASI 45° |
change table amount |
| 2 |
Table change the time | s | 12 |
Positioning accuracy
| mm | X±0.0030 Y/Z±0.0030 |
Repeat positioning accuracy | mm | X±0.0015 Y/Z±0.0015 JIS |
Machine weight | kg | 18000 |
Machine covers an area of size | mm | 3420×5450 |
