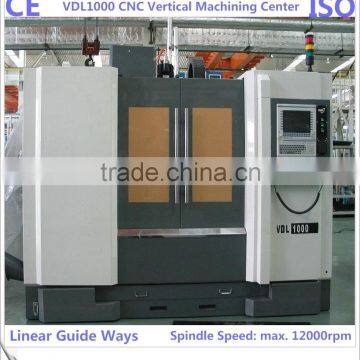

VDL1000 CE Linear Way cnc vertical machining center for sale
- Dalian/Tianjing/Shanghai/Qingdao China
- T/T Credit Card PayPal
You May Like
-
VDF1000 Box Way cnc vertical machining center for sale
-
VDF Series Box Way CNC Vertical Machining Center with CE
-
Linear guide way CNC Vertical Machining Center with CE Hot-sale VDL1000
-
High-speed Drilling And Tapping Center with CE Hot-sale TD500A
-
High-speed Drilling Center with CE and Tapping Function Hot-sale TD500A
-
CNC gantry milling machine
Product Details
| Condition | New | Type | Vertical | |
| Place of Origin | Liaoning, China | Brand Name | DALIAN | |
| Model Number | VDL1000 vertical machining center | Voltage | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz | |
| Power(W) | 25kW | Dimension(L*W*H) | 2530x2820x2500mm | |
| Weight | 7000kgs | Certification | CE; ISO9001:2008; GB/T19001:2008 | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
VDL1000 vertical machining center Technical Data
1. With CE Certificate;
2. National Inspection-free products
3. Highly rigid and stable machine structure;
4. High precision linear on all three-axis;
5. High precision spindle and High spindle speed: 8000~10000rpm;
6. Fast and reliable tool changing mechanism;
7. Cooling system;
8. Multi-functional CNC control system, such as: FANUC, SIEMENS, FAGOR, REXROTH, MITSUBISHI, etc;
Specifications | Unit | vdl1000 vertical machining center |
Table(L×W) | mm | 1120×560 |
T-slot(Numbers×Width×Distance)(b/t slots) | mm | 5×18×100 |
Table load Max. | kg | 750 |
Distance from spindle center line to column guide way surface | mm | 629 |
Distance from spindle nose end face to table upper surface | mm | 135~735 |
X/Y/Z travel | mm | 1020/560/600 |
X/Y/Z guide way type |
| X/Y: Linear way |
X/Y/Z rapid traverse speed | m/min | 24/24/18 |
Feed rate | mm/min | 1~10000 |
X/Y/Z servo motor power | kW | 3/3/3 |
X/Y/Z servo motor torque | N.m | 22/22/22 |
Positioning accuracy | mm | X:0.025 Y/Z:0.020 |
Repeat positioning accuracy | Nm | X:0.010 Y/Z:0.008 |
Spindle motor power | kW | 7.5/11 |
Spindle speed range | r/min | 60~8000 |
Spindle taper |
| #40(7/24) |
Tool magazine capacity/Type |
| 20/drum |
Tool adaptor type |
| BT40 |
Max. Tool weight | kg | 7 |
Max. Tool diameter/length | mm | 100/305drum 77/305swing arm |
Time of tool change(T-T) | sec | 6~8/3 |
Air pressure requirement | MPa | 0.6 |
Power requirement | kW | 25 |
Overall dimension(L×W×H) | mm | 2530×2820×2500 |
Net weight | kg | 7000 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
