Home > Products > CNC Slant Bed Lathe > High-class Slant Bed CNC Lathe with CE Hot-sale DL25Mx2000mm

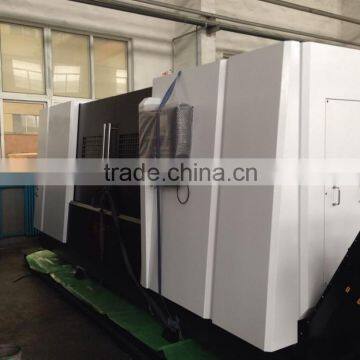

High-class Slant Bed CNC Lathe with CE Hot-sale DL25Mx2000mm

FOB Price

US$ 38,970 - 247,058 / Set

1 Set(Min. Order)

Port Dalian China
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, slant bed lathe at 70 deg.
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	1000mm	Place of Origin	Liaoning, China
Brand Name	DALIAN	Model Number	DL20M DL25M DL30M DL32M DL40
Voltage	3Phx220V 380V 400V 415V 440V 480V, 50/60Hz	Certification	ISO9001:2008; GB/T19001:2008; CE Certificate;
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

CNC Slant Bed Lathe Technical Data

Brief Introduction and Usage:

Such machining center is semi-closed control CNC turning center with 3-axis linkage.

Host machine is controlled by FANUC 0i-TC, spindle motor is AC servo motor,

It can finish such machining as turning, drilling, milling and tapping to all kinds of rotary parts.

Bed is integrated cast, larger load section, excellent rigidity, not-easy to deform, which guarantee high-accuracy cutting machining.

Main drive is AC servo motor, with high resolution spindle loop pulse encoder and spindle hydraulic brake device, which can realize high-accuracy C-axis indexing function and milling machining.

Equipped with original 12-station servo driven turret imported from Italy, can finish combined machining of drilling, milling and

tapping as well as turning, which improve accuracy and machining ability.

Item	DL20M	DL25M	DL30M	DL32M	DL40
Swing over bed mm)	440	520	625	680	800
Max turning length(mm)	600/1000	1000/1500	1000	1000/2000	2000/2500/3000
Max. turning diameter(Shafts)(mm)	260	310	310	400	550
Max. turning diameter(Discs)(mm)	400	500	600	630	750
Guide way type	linear	box-type	linear	box-type	box-type
Chuck size	8"	10"	12"	15"	15"
Spindle nose	ISO A2-8	ISO A2-8	ISO A2-8	ISO A2-11	ISO A2-11
Spindle speed (rpm)	45-4500	35-3500	30-3000	20-2000	20-2000
Main spindle motor power(S6)(kW)	11(15)	18.522	15(18.5)	22(30)	22(30)
Spindle bore diameter (mm)	76	87	88	100	100
Max bar diameter(mm)	65	74	74	84	84
X-axis travel (mm)	265	260	325	375	375
Z-axis travel (mm)	700/1040	1100/1600	1110	1030/2030	2160/2660/3160
X-axis rapid traverse(m/min)	24	12	24	13	12
Z-axis rapid traverse(m/min)	24	12	24	13	16
Turret: number of stations	12	12	12	12	12
Tool size (mm)	25×25	25×25	25×25	32×25	32×25
Tailstock quill diameter(mm)	85	100	140	160	160
Tailstock quill travel(mm)	139	139	150	180	180
Tailstock taper(MT)	5	5	5	5	5
Machine size: L×W×H(mm)	4140/4840×1794×1795	4834/4934×1830×1977	5084×2082×2050	5740/6740×2040×2240	5950/6450/6950×2358×2600
Net weight(kg)	5500/6500	7800/8300	8500	11000/13000	13000/14000/15000
CNC Type	FANUC 0i-T	FANUC 0i-T	FANUC 0i-T	FANUC 0i-T	FANUC 0i-T
