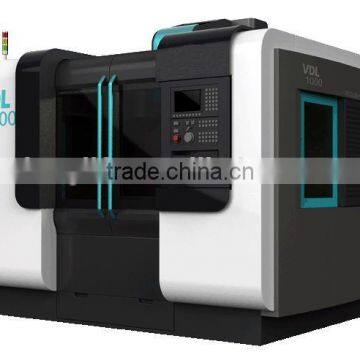

CE CNC Vertical Machining Center ISO9001 Linear Ways

Item

VDL500

VDL600A

VDL800

VDL1000

VDL1200

VDL1300

VDL1400A

Table(L×W)(mm)

700×320

800×420

900×420

1120×560

1220×620

1300×560

1450×620

T-slot(Numbers×Width×Distance)(b/t slots)

3×14×110

3×18×125

3×18×125

5×18×100

5×18×100

5×18×100

5×18×100

Table load Max(kg)

150

500

500

750

1500

750

1500

The distance from spindle center line to column guide way surface(mm)

430

511

511

629

660

629

660

The distance from spindle nose end face to table upper surface(mm)

140~520

150~670

150~670

135~735

100~775

135~735

100~775

X/Y/Z travel(mm)

450/350/380

600/420/520

800/420/520

1020/560/600

1200/600/675

1270×560×600

1400/600/675

X/Y/Z guide way type

Linear way

Linear way

Linear way

X/Y: Linear way
Z: box way

X/Y: Linear way
Z: box way
Y-axis-3 Rails

X/Y: Linear way
Z: box way
Y-axis-3 Rails

X/Y: Linear way
Z: box way
Y-axis-3 Rails

X/Y/Z rapid traverse speed(m/min)

30/30/30

24/24/20

24/24/20

24/24/18

24/24/18

24/24/18

24/24/18

Feed rate(mm/min)

1~10000

1~10000

1~10000

1~10000

1~10000

1~10000

1~10000

X/Y/Z servo motor power(Nm)

7/7/7

12/12/12

12/12/12

12/12/12

22/22/22

22/22/22

22/22/22

Positioning accuracy

0.016

XZ0.020  Y0.016

XZ 0.020  Y0.016

X0.025  YZ0.020

X0.025  YZ0.020

X0.025  YZ0.02

X0.025  YZ0.020

Repeat positioning accuracy

0.006

XZ0.008  Y0.006

XZ 0.008  Y0.006

X0.010  YZ0.008

X0.010  YZ0.008

X0.010  YZ0.008

X0.010  YZ0.008

Spindle motor power(kW)

3.7/5.5

7.5/11

7.5/11

7.5/11

11/15

11/15

11/15

Spindle speed range(r/min)

60~10000

60~8000

60~8000

60~8000

45~6000

45~10000

45~6000

Spindle taper

#40(7/24)

#40(7/24)

#40(7/24)

#40(7/24)

#50(7/24)

#40(7/24)

#50(7/24)

Tool magazine capacity/Type

12/drum

16/drum 24/swing arm

16/drum 24/swing arm

20/drum 24/swing arm

24/swing arm

24/swing arm

24/swing arm

Tool adaptor type

BT40

BT40

BT40

BT40

BT50

BT50

BT50

Max. Tool weight(kg)

6

7

7

7

15

7

15

Max. Tool diameter/length(mm)

80/200

drum

100/280

drum 77/280

swing arm

100/280

drum 77/280

swing arm

100/305

drum 77/305

swing arm

127/305

swing arm

127/305

swing arm

127/305

swing arm

Time of tool change(T-T)(sec)

6~8

6~8/3.5

6~8/3

6~8/3

3.5

3.5

3.5

Air pressure requirement (MPa)

0.6

0.6

0.6

0.6

0.6

0.6

0.6

Power requirement (kW)

15

25

25

25

35

35

35

Overall dimension(L×W×H)

2450×1590×2200

2310×2040×2337

2310×2040×2337

2530×2820×2500

2880×2405×2901

3330×2280×2650

3300×2405×2901

Net weight (kg)

2000

4800

5200

7000

8000

7200

8500
