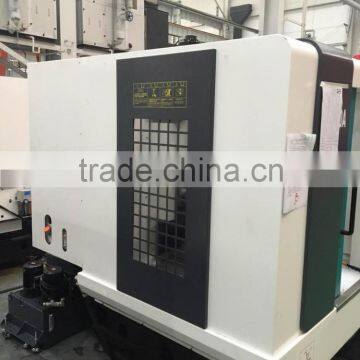

High-speed Drilling Center with CE and Tapping Function Hot-sale TD500A

FOB Price

USD $37,400 - $51,470 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Vertical
Place of Origin	Liaoning, China	Brand Name	DALIAN
Model Number	TD500A	Voltage	3Phx220V 380V 400V 415V 440V 480V, 50/60Hz
Power(W)	5.5kW	Certification	CE Certificate; ISO9001:2008; GB/T19001:2008
Warranty	12 months	After-sales Service Provided	Engineers available to service machinery overseas

CE Drilling And Milling Center Hot-sale TD500

Specifications	Unit	Parameter
Table size (L × W)	mm	650×400
Table load Max	kgs	300
X travel	mm	500
Y travel	mm	400
Z travel	mm	330
Distance from spindle center line to column guide way surface	mm	400
Distance from spindle nose end face to table upper surface	mm	150~480
X/Y/Z cutting speed	mm/min	0~20000
X/Y/Z rapid traverse speed	m/min	48/48/48
Spindle speed range	rpm	50~12000(20000 opt)
Spindle taper		No.30 (7:24 )
Spindle motor power	kW	5.5/3.7 (35/23.5Nm) Mitsubishi M70VA SJ-V5.5-01T
X/Y/Z servo motor power	kW	1.5/1.5/2.2
Tool magazine capacity / Type		16 T(swing)
Tool adaptor type		BT30
Max. Tool weight	kg	3
Max. Tool diameter/length	mm	Ø80/Ø200
Time of tool change (T-T)	sec	1.6

T-slot (Numbers × Width × Distance)	mm	3×14×125
Positioning accuracy(National Standard)	mm	X,Y,Z:0.010
Repeat positioning accuracy(National Standard)	mm	X,Y,Z:0.006
Air pressure requirement(Flow L/min)	MPa	0.5-0.7(200)
Overall dimension (L × W × H)	mm	2040×1580×2155
Net weight	kgs	2350
