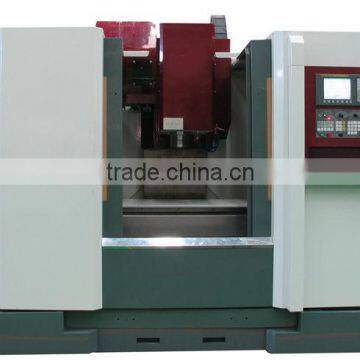

CE 4-axis Linear Way Vertical Machining Center Hot-sale VDL600

FOB Price

USD $34,780 - $108,060 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Vertical
Place of Origin	Liaoning, China	Brand Name	DALIAN
Model Number	VDL600A VDL1000 VDL1200 VDL1400A VDF850 VDF1000 VDF1200 VDF1500 VDF180	Voltage	220V/380V/415V/440V/480V
Certification	CE; ISO9001:2008; GB/T19001:2008	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

Vertical Machining Center Technical Data

(For more information, to: export(at)longlife-machinery(dot)com)

There are four series of CNC machining center in our company:

CNC Horizontal Machining Center, CNC Vertical Machining Center, CNC High-speed Vertical Machining Center and CNC Milling Machine

CNC Vertical Machining Center: VDL500;VDL600A;VDL800;VDL1000;VDL1200; VDL1400A;VDF850 ;VDF1000; VDF1200; VDF1500; VDF1800

VDF series: Box way;

VDL series: X/Y-Linear way, Z-box way;

Item	VDL500	VDL600A	VDF850	VDL1000 VDF1000	VDL1200 VDF1200	VDL1400A	VDF1500	VDF1800
Table(L×W)(mm)	700×320	800×420	1000×500	1120×560	1220×620	1450×620	1700×800	2000×800
T-slot(Numbers×Width×Distance)	3×14×110	3×18×125	5×18×100	5×18×100	5×18×100	5×18×100	6×18×125	6×18×125
Table load Max(kg)	150	500	500	750	1500	1500	2500	2500
X/Y/Z rapid traverse speed(m/min)	30/30/30	24/24/20	20/20/18	24/24/18	24/24/18	24/24/18	15/15/12	15/15/12
Feed rate(mm/min)	1~10000	1~10000	1~7600	1~10000	1~10000	1~10000	1~6000	1~6000
Spindle speed range(r/min)	60~10000	60~10000	60~8000	60~8000	45~6000	45~6000	45~6000	45~6000
Tool magazine capacity/Type	12/drum	16/drum 24/swing arm	20/drum 24/swing arm	20/drum 24/swing arm	24/swing arm	24/swing arm	24/swing arm	24/swing arm
Tool adaptor type	BT40	BT40	BT40	BT40	BT50	BT50	BT50	BT50
Max. Tool weight (kg)	6	7	7	7	15	15	15	15
Time of tool change(T-T) (sec)	6~8	6~8/3.5	6~8/3	6~8/3	3.5	3.5	3.5	3.5
Air pressure requirement (MPa)	0.6	0.6	0.5	0.6	0.6	0.6	0.6	0.6
Power requirement (kW)	15	25	25	25	35	35	40	40
