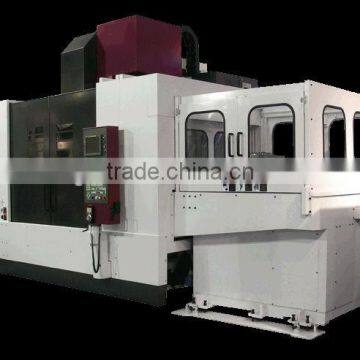

MDV Series High-speed Machining Center

Specifications

Unit

Model

MDV55

MDV75

MDV95

Table(L×W)

mm

1050×560

1550x740

2300×950

T-slot(Numbers×Width×Distance)(b/t slots)

mm

18×100×5

22×140×5

22×125×7

Table load Max

kg

800

1500

2500

The distance from spindle center line to column guide way surface

mm

615

810

1100

The distance from spindle nose end face to table upper surface

mm

150~660

150~810

150~1000

X/Y/Z travel

mm

1020/550/510

1530/740/660

2060/950/850

X/Y/Z guide way type

Sliding Guide way

Sliding Guide way

sliding guide

X/Y/Z rapid traverse speed

m/min

30/30/20

24/24/20

20/20/15

Feed rate

mm/min

1~10000

1~10000

1~10000

X/Y/Z servo motor power

Nm

3.0/3.0/4.0

4.0/4.0/7.0

7.0/4.0×2/7.0

Positioning accuracy

mm

±0.003(JIS),0.008(VDI)

±0.003(JIS),0.008(VDI)

±0.008/±0.005 /±0.005

Repeat positioning accuracy

mm

±0.002(JIS),0.004(VDI)

±0.002(JIS),0.004(VDI)

±0.003

Spindle motor power

kW

7.5/11(SPECIAL:11/15)

7.5/11(SPECIAL:11/15)

11/15

Spindle speed range

r/min

6000(Second level gear speed)(Special:8000rpm(Second level gear speed,13000rpm MS)

6000(Second level gear speed)(Special:8000rpm(Second level gear speed,13000rpm MS)

6000(Second level gear speed)(Special:8000rpm(Second level gear speed,13000rpm MS)

Spindle taper

No.50

No.50

No.50

Tool magazine capacity/Type

20(Special:30)

20(Special:30)

30

Tool adaptor type

JISB6339 50T

JISB6339 50T

JISB6339 50T

Max. Tool weight

kg

20

20

20

Max. Tool diameter/length

mm

Φ110(30Drum:Φ103)/350

Φ110(30Drum:Φ103)/350

Φ110(30Drum:Φ103)/350

Time of tool change(T-T)

sec

(T-T),5.9(C-C)Speed as per the tool weight

(T-T),5.9 (C-C)Speed as per the tool weight

(T-T),5.9(C-C)Speed as per the tool weight

Air pressure requirement

MPa

0.4~0.6

0.4~0.6

0.5~0.8

Net weight

kg

7500

10500

20500

Machine Height

Mm

2846

3226

3662
