Home > Products > CNC Machining Center > Mid-sized CE Linear Way Vertical Machining Center Hot-sale VDL1000

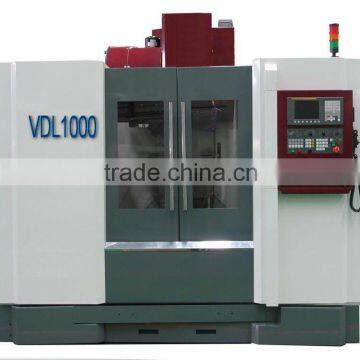

Mid-sized CE Linear Way Vertical Machining Center Hot-sale VDL1000
- 1000 Set / Sets per Month
- Dalian China
- T/T Credit Card PayPal
You May Like
-
VDL600 Small Vertical Machining Center Linear Way
-
MDH40 small cnc horizontal machining center with CE
-
VDL500 Smallest cnc vertical machining center for sale
-
CE Vertical Machining Center
-
VDL800 popular cnc vertical machining center for sale
-
VDL1400 CE cnc linear way cnc vertical machining center made in China
Product Details
| Condition | New | Type | Vertical | |
| Place of Origin | Liaoning, China | Brand Name | DALIAN | |
| Model Number | VDL800 VDL1000 | Voltage | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz | |
| Certification | CE; ISO9001:2008 | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Mid-sized Vertical Machining Center
to: export(at)longlife-machinery(dot)com
The VDL 800 is a collection of the latest development results of the world's CNC Machine tool industry and advanced manufacturing technology, and represents the development trend of the modern machine tool technology. The VDL 800 is equipped with high-accuracy Roller Guide(X, Y, and Z). The machine features with the rigid structure, which is done through iterative simulation and computation of engineering mechanics, aiming to achieve the compact structural design and the engineering requirements of high rigidity and high quality. The machine not only performances the machining of flat-type, plate-type, spherical and high-accuracy workpieces and also is capable of molding. The machine is equipped with automatic tool changing system (ATC), automatic lubricating system, automatic cooling system, full-enclosed guard, automatic chip conveyor, manual oil gun and Manual Pulse Generator (MPG). Milling, boring, drilling, reaming and tapping can be performed in one set-up. The machine has characteristics of high-Automation, reliability, convenience, easy operation, suitability and handsome appearance together with heavy duty. The machine is widely used in various industries of military, aviation, car manufacturing and molding.
Specifications | Unit | VDL800 | VDL1000 |
Table(L×W) | mm | 900×420 | 1120×560 |
T-slot(Numbers×Width×Distance)(b/t slots) | mm | 3×18×125 | 5×18×100 |
Table load Max | kg | 500 | 750 |
The distance from spindle center line to column guide way surface | mm | 511 | 629 |
The distance from spindle nose end face to table upper surface | mm | 150~670 | 135~735 |
X/Y/Z travel | mm | 800/420/520 | 1020/560/600 |
X/Y/Z guide way type |
| Linear way | X/Y: Linear way |
X/Y/Z rapid traverse speed | m/min | 24/24/20 | 24/24/18 |
Feed rate | mm/min | 1~10000 | 1~10000 |
X/Y/Z servo motor power | kW | 3/3/3 (1.2/1.2/1.8) (1.8/1.8/2.5) | 3/3/3 |
X/Y/Z servo motor torque | Nm | 12/12/12 | 12/12/12 |
Positioning accuracy | mm | X/Z: 0.020 Y:0.016 | X:0.025 Y/Z:0.020 |
Repeat positioning accuracy | mm | X/Z: 0.008 Y:0.006 | X:0.010 Y/Z:0.008 |
Spindle motor power | kW | 7.5/11 | 7.5/11 |
Spindle speed range | r/min | 60~8000 | 60~8000 |
Spindle taper |
| #40(7/24) | #40(7/24) |
Tool magazine capacity/Type |
| 16/drum 24/swing arm | 20/drum 24/swing arm |
Tool adaptor type |
| BT40 | BT40 |
Max. Tool weight | kg | 7 | 7 |
Max. Tool diameter/length | mm | 100/280 drum 77/280 swing arm | 100/305 drum 77/305 swing arm |
Time of tool change(T-T) | sec | 6~8/3 | 6~8/3 |
Air pressure requirement | mPa | 0.6 | 0.6 |
Power requirement | kW | 25 | 25 |
Overall dimension(L×W×H) | cm | 231×204×234 | 253×282×250 |
Net weight (kg) | kg | 5200 | 7000 |
