Home > Products > CNC Machining Center > CE Box Way Vertical Machining Center

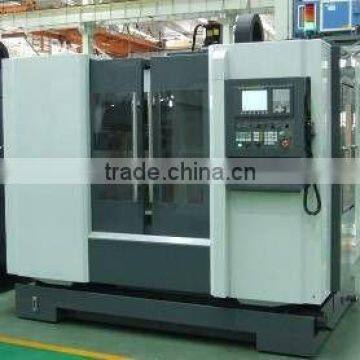

CE Box Way Vertical Machining Center

FOB Price

USD $49,650 - $108,060 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Dalian China
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Vertical
Place of Origin	Liaoning, China	Brand Name	DALIAN
Model Number	VDF1000 VDF1200 VDF1500 VDF1800	Voltage	3Phx220V 380V 400V 415V 440V 480V, 50/60Hz
Certification	CE; ISO9001:2008; GB/T19001:2008	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

VDF Vertical Machining Center Parameter

Machine Featurers:

1. With CE Certificate;

2. National Inspection-free products

3. Highly rigid and stable machine structure;

4. High precision Box Ways on all three-axis;

5. High precision spindle and High spindle speed: 8000~10000rpm;

6. Fast and reliable tool changing mechanism;

7. Cooling system;

8. Multi-functional CNC control system, such as: FANUC, SIEMENS, FAGOR, REXROTH, MITSUBISHI, etc;

Real Photos

Main Technical Data

Specifications	Unit	VDF850	VDF1000	VDF1200	VDF1500	VDF1800
Table (L×W)	mm	1000×500	1120×560	1220×620	1700×800	2000×800
T-slot(Numbers × Width × Distance) (b/t slots)	mm	5×18×100	5×18×100	5×18×100	6×18×125	6×18×125
Table load Max	kg	500	750	1200	2500	2500
The distance from spindle center line to column guide way surface	mm	550	629	660	850	850
The distance from spindle nose end face to table upper surface	mm	150~660	135~735	90~765	200~962	180~942
X/Y/Z travel	mm	850/510/510	1020/560/600	1200/600/675	1530/800/762	1850/800/762
X/Y/Z guide way type		box way	box way	box way Y-axis 4 rails	box way Y-axis 4 rails	box way Y-axis 4 rails
X/Y/Z rapid traverse speed	m/min	20/20/18	24/24/18	20/20/18	15/15/12	15/15/12
Feedrate	mm/min	1~7600	1~10000	1~10000	1~6000	1~6000
Positioning accuracy	mm	X:0.025 Y/Z:0.020	X:0.025 Y/Z:0.020	X:0.030 Y/Z:0.020	X:0.030 Y/Z:0.020	X:0.030 Y/Z:0.020
Repeat positioning accuracy	mm	X:0.010 Y/Z:0.008	X:0.010 Y/Z:0.008	X:0.013 Y/Z:0.008	X:0.013 Y/Z:0.008	X:0.013 Y/Z:0.008
X/Y/Z servo motor power	kW	3/3/3(4.2/4.2/4.2)	3/3/3	3/3/3	3/3/3	3/3/3
(Nm)		12/12/12	12/12/12	22/22/22	22/22/22	22/22/22
Spindle motor power	kW	7.5/11	7.5/11	11/15	11/15 wide range motor	11/15 wide range motor
Spindle speed range	r/min	60~8000	60~8000	45~6000	45~6000	45~6000
Spindle taper		#40(7/24)	#40(7/24)	#50(7/24)	#50(7/24)	#50(7/24)
Tool magazine capacity/Type		20/drum 24/swing arm	20/drum 24/swing arm	24/swing arm	24/swing arm	24/swing arm
Tool adaptor type			BT40	BT50	BT50	BT50
Max. Tool weight	kg	7	7	15	15	15
Max. Tool diameter/length	mm	77/305	77/305 swing arm	127/305 swing arm	110/350swingarm	110/350swingarm
Time of tool change(T-T)(sec)		6~8/3	6~8/3	3.5	3.5	3.5
Air pressure requirement	mPa	0.5	0.6	0.6	0.6	0.6
Power requirement	kW	25	25	35	40	40
Overall dimension(L×W×H)	cm	335×228×265	282×282×248	288×282×280	430×348×312	516×348×3120
Net weight	kg	7000	8000	8500	14000	14500

Factory Overview

Our Services

1, Your inquiry will be replied in 24 hours;

2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;

3, To offer free spare parts and service within one year of warranty;

4, Technical Support Provide operation video for training;

5, Professional after-sales service team;

Call us at any time: +86 -15641121240/15641121140

Fax us:+86-411-84410129

FAQ

Payment Term:

30% down payment, 70% by T/T before shipment;
100% LC at sight(optional and shall be discussed before placing order);

Minimum Order Quantity:

1 Set;
≥2 sets, there will be much discounts.

Warranty:

Normally, 12 months for parts as of delivery of the machines;

Shipment:

For machine itself, by sea or train(inland countries).
For documents, by international express. eg DHL, TNT or EMS.
