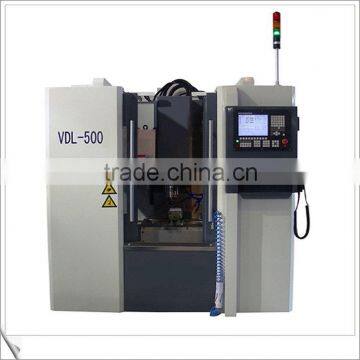

VDL500 Smallest cnc vertical machining center for sale

FOB Price

USD $24,780 - $33,060 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Vertical
Place of Origin	Liaoning, China	Brand Name	DALIAN
Model Number	VDL500 cnc vertical machining center	Voltage	220V/380V/415V/440V/480V
Power(W)	3.7kW	Dimension(LWH)	2450x1590x2200mm
Weight	2000kgs	Certification	CE; ISO9001:2008; GB/T19001:2008
Warranty	12 months	After-sales Service Provided	Engineers available to service machinery overseas

VDL500 vertical machining center

Standard Configuration

Spindle speed 8000rpm (Dalian/HNC-31M SYSTEM: 6000rpm), BT40, X / Y / Z-axis LinearGuide Way, Tool magazine capacity/type: 12/drum;

National Inspection-free Products;

Main Technical Data

Specifications	Unit	Parameter
Table (L × W)	mm	700×320
T-slot (Numbers × Width × Distance) (b/t slots)	mm	3×14×110
Table load Max	kg	150
Distance from spindle center line to column guide way surface	mm	430
Distance from spindle nose end face to table upper surface	mm	140~520
X/Y/Z travel	mm	450/350/380
X/Y/Z guide way type		Linear way
X/Y/Z rapid traverse speed	m/min	30/30/30
Feed rate	mm/min	1~10000
X/Y/Z servo motor power	kW	1.4/1.4/1.6 (1.2/1.2/1.8) (2.85/2.85/2.85)
X/Y/Z servo motor torque	N.m	7/7/7
Positioning accuracy	mm	0.016
Repeat positioning accuracy	mm	0.006
Spindle motor power	kW	3.7/5.5
Spindle speed range	r/min	60~10000
Spindle taper		#40(7/24)
Tool magazine capacity / Type		12/drum
Tool adaptor type		BT40
Max. Tool weight	kg	6
Max. Tool diameter/length	mm	80/200
Time of tool change (T-T)	sec	6~8
Air pressure requirement	MPa	0.6
Power requirement	kW	15
Overall dimension (L × W × H)	mm	2450×1590×2200
Net weight	kg	2000
