Product Details
| Condition | New | Place of Origin | Liaoning, China | |
| Brand Name | Dalian | Model Number | XD30A XD40A | |
| Type | Vertical | CNC or Not | CNC | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

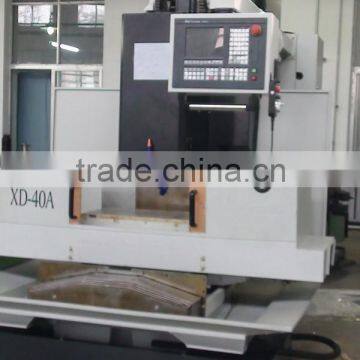

CNC Vertical Milling Machine
Item | XD-30A | XD-40A |
Table(L×W)(mm) | 700×320 | 800×420 |
T-slot(Numbers × Width × Distance)(b/t slots) | 3×14×110 | 3×18×125 |
Table load Max(kg) | 350 | 500 |
The distance from spindle center line to column guide way surface(mm) | 430 | 511 |
The distance from spindle nose end face to table upper surface(mm) | 140~520 | 150~670 |
X/Y/Z travel(mm) | 450/350/380 | 600/420/520 |
X/Y/Z guide way type | Linear way | |
X/Y/Z rapid traverse speed(m/min) | 30/30/30 | 24/24/20 |
Feedrate(mm/min) | 1-10000 | |
X/Y/Z servo motor power(Nm) | 11/11/11 | 12/12/12 |
Spindle motor power(kW) | 5.5/7.5 | 7.5/11 |
Spindle speed range(r/min) | 60~10000 | 60~8000 |
Spindle taper | #40(7/24) | |
|
| |
X/Y/Z Positioning accuracy(mm) | 0.016 | X/Z:0.02 Y:0.016 |
Air pressure requirement (mPa) | 0.5 | 0.6 |
Overall dimension(L×W×H) | 2500×2000×2200 | 2310×2040×2337 |
Net weight (kg) | 2400 | 4000 |
