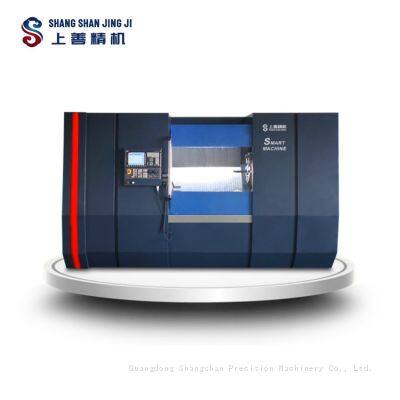

Graphite round rod outer circle processing equipment Graphite boat cnc S-750NCM

Max. Rotation Dia:   Φ530mm

Max. Turning Dia:   Φ460mm

Max. Dia Machining On The Tool Holder:   Φ280mm

Max. Turning Length:   750mm

Bar Capacity:   Φ52

Spindle Head Type:   A2--6

Max. Spindle Speed:   3500rpm

Worktable Dimensions:   270*750mm

X/Z Rapid Speed:   X--Axis:   24m/min | Z--Axis:   24m/min

Positioning Accuracy:   +-0.008/300mm

Repeatability:   +-0.005/300mm

Turret Type:   12T Servo Turret

External Diameter Tool Holder:   25*25mm

Dia. Of Tailstock Sleeve:   Φ80mm

Travel Of Tailstock Sleeve:   80mm

Taper Hole Of Tailstock Sleeve:   Morse 5#

Machine Tool Dimensions:   2850*1950*1800mm

Machine Tool Weight:   4000Kg

Torque:   Customizable configuration

Drilling Capacity:   Customizable configuration

Voltage:   380V

Frequency:   50/60 Hz

Phase Type:   3--Phase Electricity

Color:   Black

Usage/Application:   Graphite Processing|Carbon Fiber Processing|Ceramic Processing|Composite Material Processing

Can it be customized:   Supports customization

Guarantee:   One year warranty for the whole machine

Brand:   ShangshanJingji

Our Graphite round rod outer circle processing equipment is a state-of-the-art lathe designed to deliver exceptional precision when machining the outer circles of graphite rods. This specialized equipment is perfect for applications where dimensional accuracy and surface finish are critical. Whether you are working with isostatic isotropic graphite or other high-performance materials, this equipment provides the ideal solution for ensuring smooth, flawless processing. It is capable of turning graphite components with high precision, enabling manufacturers to create components for a wide range of industries, including electronics, automotive, and aerospace. The Isostatic isotropic graphite lathe integrated into the system guarantees superior machining capabilities for advanced graphite materials, providing stable and reliable results. For those seeking maximum customization, our Customized graphite CNC machine tool offers tailored solutions that can be adapted to specific processing requirements, optimizing workflow efficiency and reducing setup times.

Furthermore, the combination of our Automatic lathe turning graphite system and advanced Graphite boat CNC machine enhances production flexibility. The automatic turning feature reduces manual intervention, improving the consistency and quality of large-volume graphite machining tasks. Additionally, our Wear-resistant graphite box processing equipment works seamlessly with these systems, ensuring that even the most demanding parts can be processed without compromising the quality of the final product. With the support of our Five-axis vertical milling machining center, users can achieve intricate geometries and complex shapes with ease, making this setup a comprehensive solution for high-precision graphite machining. Whether you are turning, engraving, or milling graphite components, our machines deliver unparalleled performance and accuracy, streamlining your production process and enhancing operational efficiency.
