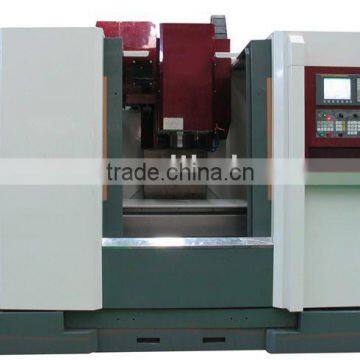

VDL1300 Linear Way CNC Vertical Machining Center with CE

FOB Price

USD $48,780 - $61,060 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Vertical
Place of Origin	Liaoning, China	Brand Name	DALIAN
Model Number	VDL1300(1300x560mm)	Voltage	220V 380V 400V 415V 440V 480V
Power(W)	35kW in all	Dimension(LWH)	3330x2280x2650mm
Weight	7200kgs	Certification	CE; ISO9001:2008; GB/T19001:2008
Warranty	12 months	After-sales Service Provided	Engineers available to service machinery overseas

VDL1300 Linear Guide Way Vertical Machining Center

Main features:

The machine is widely used in various industries of military, aviation, car manufacturing and molding.
The machine has characteristics of high-Automation, reliability, convenience, easy operation, suitability and handsome appearance together with heavy duty.
The machine is equipped with automatic tool changing system (ATC), automatic lubricating system, automatic cooling system, full-enclosed guard, automatic chip conveyor, manual oil gun and Manual Pulse Generator (MPG).
Milling, boring, drilling, reaming and tapping can be performed in one set-up.

Specifications	Unit	Parameter
Table (L × W)	mm	1300×560
T-slot (Numbers × Width × Distance) (b/t slots)	mm	5×18×100
Table load Max	kg	750
The distance from spindle center line to column guide way surface	mm	629
Distance from spindle nose end face to table upper surface	mm	135~735
X/Y/Z travel	mm	1270×560×600
X/Y/Z guide way type		X/Y: Linear way Z: Sliding guide way Y-axis-3 Rails
X/Y/Z rapid traverse speed	m/min	24/24/18
Feed rate	mm/min	1~10000
X/Y/Z servo motor power	Nm	22/22/22
X/Y/Z servo motor torque	N.m	22/22/22
Positioning accuracy	mm	X:0.025 Y/Z:0.020
Repeat positioning accuracy	mm	X:0.010 Y/Z:0.008
Spindle motor power	kW	11/15
Spindle speed range	r/min	60~8000
Spindle taper		#40(7/24)
Tool magazine capacity / Type		20/drum
Tool adaptor type		BT40
Max. Tool weight	kg	7
Max. Tool diameter/length	mm	127/305 swing arm
Time of tool change (T-T)	sec	3.5
Air pressure requirement	MPa	0.6
Power requirement	kW	35
Overall dimension (L × W × H)	mm	3330×2280×2650
Net weight	kg	7200
