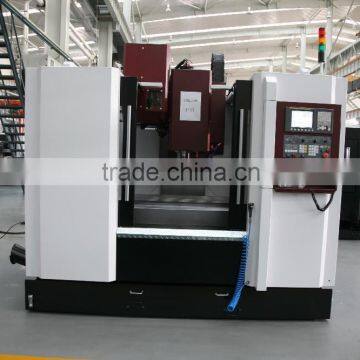

VDL Series CE Linear Way Vertical Machining Center

Item

VDL500

VDL600A

VDL800

VDL1000

VDL1200

VDL1400A

Table(L×W)(mm)

700×320

800×420

900×420

1120×560

1220×620

1450×620

T-slot(Numbers×Width×Distance)(b/t slots)

3×14×110

3×18×125

3×18×125

5×18×100

5×18×100

5×18×100

Table load Max(kg)

150

500

500

750

1500

1500

The distance from spindle center line to column guide way surface(mm)

430

511

511

629

660

660

The distance from spindle nose end face to table upper surface(mm)

140-520

150-670

150-670

135-735

100-775

100-775

X/Y/Z travel(mm)

450/350/380

600/420/520

800/420/520

1020/560/600

1200/600/675

1400/600/675

X/Y/Z guide way type

Linear way

Linear way

Linear way

X/Y: Linear way
Z: box way

X/Y: Linear way
Z: box way
Y-axis-3 Rails

X/Y: Linear way
Z: box way
Y-axis-3 Rails

X/Y/Z rapid traverse speed(m/min)

30/30/30

24/24/20

24/24/20

24/24/18

24/24/18

24/24/18

Feed rate(mm/min)

1-10000

1-10000

1-10000

1-10000

1-10000

1-10000

X/Y/Z servo motor power(Nm)

7/7/7

12/12/12

12/12/12

12/12/12

22/22/22

22/22/22

Spindle motor power(kW)

3.7/5.5

7.5/11

7.5/11

7.5/11

11/15

11/15

Spindle speed range(r/min)

60-10000

60-8000

60-8000

60-8000

45-6000

45-6000

Spindle taper

#40(7/24)

#40(7/24)

#40(7/24

#40(7/24)

#50(7/24)

#50(7/24)

Tool magazine capacity/Type

12/drum

16/drum 24/swing arm

16/drum 24/swing arm

20/drum 24/swing arm

24/swing arm

24/swing arm

Tool adaptor type

BT40

BT40

BT40

BT40

BT50

BT50

Max. Tool weight(kg)

6

7

7

7

15

15

Max. Tool diameter/length(mm)

80/200drum

100/280drum 77/280swing arm

100/280drum 77/280swing arm

100/305drum 77/305swing arm

127/305swing arm

127/305swing arm

Time of tool change(T-T)(sec)

6-8

6-8/3.5

6-8/3

6-8/3

3.5

3.5

Air pressure requirement (MPa)

0.6

0.6

0.6

0.6

0.6

0.6

Power requirement (kW)

15

25

25

25

35

35
