CKE61100Mx4000 large heavy machining flat bed cnc lathe
- Dalian China
- T/T Credit Card PayPal
You May Like
-
CKE6150x750 CNC Horizontal Lathe Machine with CE
-
Smaller-sized CNC Flat Bed Lathe with CE Hot-sale CKE6150
-
CKE6130Z flat bed cnc lathe machine for sale
-
CKE6130i/Z Smallest flat bed cnc lathe machine for sale
-
Catalogue of Box Way and Linear Way Vertical Machining Center with CE
-
Catalogue of CE high speed cnc vertical machining center Hot-sale MDV55
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 1000mm | Place of Origin | Liaoning, China | |
| Brand Name | DALIAN | Model Number | CKE61100Mx4000 | |
| Voltage | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz | Power(W) | 22/26kW | |
| Dimension(L*W*H) | depends | Weight | 16000kgs | |
| Certification | CE Certificate; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

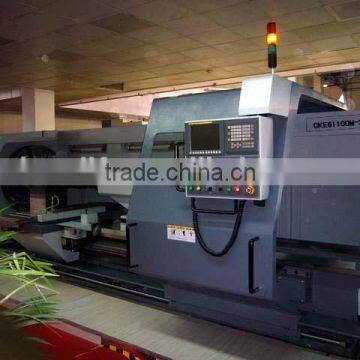

CKE61100Mx4000 heavy machining flat bed cnc lathe
1. CKE61100M is heavy-duty flat-bed CNC lathe: max load capacity can be 6000kgs;
2. It is a two-axis simultaneously controlled machine with semi-closed-loop CNC feedback system.
3. Servo main motors, 22/26kW;
4. Kinds of CNC Controllers for your choice: FANUC, SIEMENS, FARGO, GSK, etc.
5. With full splash-cover;
6. Vertical 4-station Electrical Tool Post; Horizontal 6/8 Electrcial Tool Post is available, too.
7. With CE Certificate;
8. Featuring heavy duty load, high rigidity & reliable design and structure, it is able to meet various machining, ie. ID & OD turning, threading, contouring, taper turning, end facing, etc. on rotary parts (shafts & discs) of ferrous or non-ferrous metals.
9. Wide applications are made in industries such as automotive, power generation, power transformer, steel, casting & foundry milll, general machining, chemical, petroleum, aerospace & aviation, hydro-mechanical, pump, paper machinery, food machinery, motor, electronics, textile machinery, etc.
Specifications | Unit | Parameter |
Max. swing over bed | mm | φ1000 |
Width of bed | mm | 755 |
Max. length of work piece | mm | 4000 |
Max. swing over slide | mm | φ630 |
X travel | mm | 520 |
Z travel | mm | 4900 |
Spindle nose |
| A2-15 |
Chuck size | mm |
|
Taper of spindle bore | Morse | 1:20 |
Spindle bore | mm | φ130 |
Steps of spindle speed |
| 4-step actuator |
Frequency conversion motor power | kW | 22 |
Rapid traverse X/Z | m/min | 6/8 |
Positioning accuracy | mm | X: 0.030 Z:0.060 |
Repeat positioning accuracy | mm | X: 0.012 Z:0.025 |
Vertical 4-position Tool post changing time | s | 4.0 |
Horizontal 6-position Tool post changing time | s | 3.0 |
Diameter of tailstock quill | mm | 200 |
Travel of tailstock quill | mm | 300 |
Taper of tailstock quill | Morse | M6 |
Net weight | t | 15 |
Overall dimensions | mm |
|
- Servo main motor, X/Z axis servo motor , automatic 3 gears, infinitely variable speeds within the gear,
- Spindle Speed: 5~500rpm, 4-position electric turret, Spindle bore: φ130mm,
- Bed width: 750mm, φ1000mm manual 4-jaw chuck, manual tailstock;
