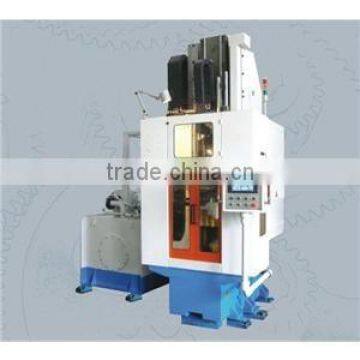

L5705 small vertical broaching machine with PLC

FOB Price

US$ 20,300 - 25,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China	Brand Name	LFM
Model Number	L5705(50KN) vertical broaching machine	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

L5705 small vertical broaching machine

Main Usage

this is special-purpose machine for only for some parts;
main used for irregular holes, slot, involute, square hole, six angle hole, spline, half round and others;
it can be half-cover and full-cover;

Main Technical Data

Specifications	Unit	Parameter
Rated pulling capacity	kN	50
Nominal working stroke	mm	800
Working stroke speed (stepless)	m/min	2~10
Return stroke speed of main sliding board(stepless)	m/min	2~20
Max. travel of device for carrying tools	mm	350
Speed of tools(to main sliding board)	m/min	1~5
Pushing speed of pushing tool (to main sliding board)	m/min	1~5
Worktable size(lengthxwidth)	mm	350×300
Max. size of workpiece(ODxWidth)	mm	Φ190×80
Hole diameter of worktable	mm	Φ150
The aperture of the faceplate	mm	Φ75
Max. length of tool	mm	1000
Distance from tool to surface of main slidingboard	mm	160
Distance from tools to sub-sliding board	mm	96
Travel of pulling workpiece	mm	130
Operation height	mm	≤910
Distance from end face of toolshank to worktable surface	mm	210
Axial piston pump for main drive		A37-F-R-04
Displacement	mL/r	37
Max. working pressure	MPa	16
Rotated working pressure	MPa	11
Main motor		Y132M-4-B35
The main motor power	kW	7.5
Main motor rotational speed	r/min	1440
Motor pump package for sub system		SVPF-40-70(4P-2HP)
Displacement	mL/r	11
Max. working pressure	MPa	6
Rotated working pressure	MPa	4
Power of sub-motor	kW	1.5
Speed of sub-motor	r/min	1400
Coolant pump		QLY4.8-45×6-A
Lift of coolant pump	m	45
Cooling pump flow	m3/h	4.8
Cooling pump power	kW	1.5
Rotational speed cooling pump	r/min	2840
Power of lub pump	W	100
Flow amount of lub pump	mL/min	150
volume of lub pump	L	1.8
Magneto chi p conveyor ZLYC1 7U power	W	200
Total capacity of main motor	kW	12
Overall dimension(LxWxH)	mm	2600×2800×3690
Net weight machine	kg	5000
