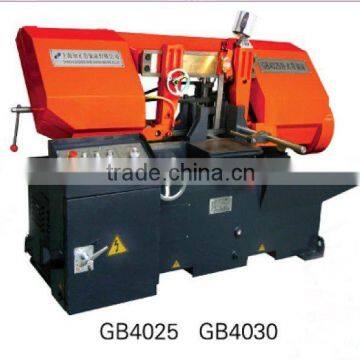

GB40 Series Single-column Horizontal Band Sawing Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Model Number	GB4025B GB4025C GB4025/50 GB4030 GB4032 GB4035 GB4040 GB4050
After-sales Service Provided	Engineers available to service machinery overseas

GB 40 Series Semiautomatic Band sawing machine

Specifications	Unit	Model
Specifications	Unit	GB4025B	GB4025C	GB4025/50	GB4030	GB4032	GB4035	GB4040	GB4050
Maximum Range Round/square	mm	Dia 250 220×230	Dia 250 220×250	Dia250 220×500	Dia 300 230×300	Dia320 260×320	Dia 350 280×350	Dia 400 320×400	Dia 500 380×500
Transmission Saw blade speed	m/min	25/38/52/65/80	25/38/52/65/80	25/38/52/65/80	25/38/52/65/80	25/38/52/65/80	25/38/52/65/80	25/38/52/65/80	25/45/68
Blade Specifications (L × W × T)	mm	3152x27x0.9	3505x27x0.9	3820x34x1.1	3505x27x0.9	3760x34x1.1	4115x34x1.1	4345x34x1.1	4800x41x1.3
Productivity	cm²/min	≥40	≥40	≥45	≥48	≥50	≥55	≥58	≥60
Hydraulic working pressure	Mpa	2	2	2	2	2	2	2	2
Main Motor	kW	2.45	2.6	3.4	2.6	3.4	3.4	4.5	4.5
Package size( L× W × H)	mm	1910x1000 x1100	1910x1000 x1100	1910x1000 x1300	1910x1000 x1250	1910x1100 x1250	1910x1200 x1312	2370x1200 x1400	2600x1250 x1600
Machine weight	kg	750	800	1100	850	1200	1550	1600	2000

Hydraulic clamping, Hand Feeding
