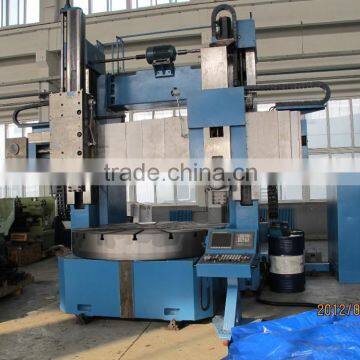

Catalogue of conventional dobule column vertical lathe machine
- Dalian China
- T/T L/C D/P D/A
You May Like
-
C5132 Large single column vertical lathe machine
-
C5110 CE conventional single column vertical lathe machine for sale
-
C5232 Conventional dobule column vertical lathe machine for sale
-
VT125 high class single column cnc vertical lathe for sale
-
LCK6070 high speed cnc vertical turning lathe machine
Most Popular
-
C5112 CE conventional vertical lathe machine single column
Product Details
| Condition | New | Type | Vertical | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 12500mm | Place of Origin | Liaoning, China | |
| Brand Name | LFM | Model Number | C5225 C5232 C5240 C5250 C5263 C5280 C52100 C52125 | |
| Voltage | 220V/380V/415V/440V/480V | Power(W) | 15~132 kW in all | |
| Dimension(L*W*H) | Depends | Weight | Depends | |
| Certification | CE; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
double column vertical lathe Technical Data
Such double column vertical lathe has following features:
1. double column vertical lathe;
2. with DRO and CE Certificate;
3. such vertical lathe is suitable for turning the ferrous, nonferrous metal and some kinds of non-metal materials with hard alloy, high capacity and high speed steel tools.
4.Main bodies of the machine are made of high rigid resin sand castings with thermal aging treatment. Steel parts are thermal refined.
5.The machine adopts a stable rigid structure and consists mainly of base, table, column, cross rail, tool head, hydraulic system and electric system. Cross rail moves up and down along guideways of the column.
Specifications | Unit | C5225 | C5232 | C5240 | C5250 | C5263 | C5280 | C52100 | C52125 |
Max. turning diameter | mm | 2500 | 3150 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 |
Max. working height of workpiece | mm | 1600 | 2000 | 1600 | 2000 | 3000 | 4000 | 4000 | 4000 |
Max. weight of workpiece | T | 10 | 10/30 | 10/32 | 30/50 | 50 | 100 | 100 | 100 |
Table diameter | mm | 2250 | 2830 | 2830/3200 | 3600/4500 | 3800 | 5700/6000 | 7100 | 7500 |
Speed range of table | r/min | 2~63 | 2~63 | 2~63 | 0.2~40 | 0.5~50 | 0.2~20 | 0.16~16 | 0.16~16 |
Speed-step of table | steps | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
Travel of right tool post (Vertical) | mm | 1300~1500 | 1000~1500 | 1000~1500 | 1250~1600 | 1600~2000 | 2000 | 2520 | 2520 |
Travel of left tool post (Horizontal) | mm | 1400 | 1735 | 2150 | 20~2630 | 3415 | 50~4400 | 50~4400 | 50~4400 |
Power of main motor | kW | 55 | 55 | 55/75 | 75/75 | 75 | DC132 | DC132 | DC132 |
kinds of colors for your choice/can be customized
