C5225 conventional dobule column vertical lathe machine
- 100 Set / Sets per Month
- Dalian China
- T/T L/C D/P D/A
You May Like
-
C5120 conventional single column vtl for sale
-
C52125 CE double column conventional heavy duty vertical lathe machine
-
C517 CE single column vertical lathe machine for sale
-
Catalogue of Professional conventional single column vertical lathe
-
CK5123 CE Larger single column cnc vertical lathe
-
Catalogue of conventional single column vertical lathe
Product Details
| Condition | New | Type | Vertical | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 2500mm | Place of Origin | Liaoning, China | |
| Brand Name | LFM | Model Number | C5225 dobule column vertical lathe machine | |
| Voltage | 220V 380V 400V 415V 440V 480V | Power(W) | 55kW | |
| Dimension(L*W*H) | 5180x5200x4870mm | Weight | 33 tons | |
| Certification | CE Certificate; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

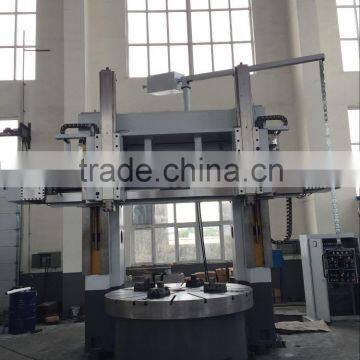

C5225 conventional double column vertical lathe
Such double column vertical lathe has following features:
1. double column vertical lathe;
2. with DRO and CE Certificate;
3. such vertical lathe is suitable for turning the ferrous, nonferrous metal and some kinds of non-metal materials with hard alloy, high capacity and high speed steel tools.
4.Main bodies of the machine are made of high rigid resin sand castings with thermal aging treatment. Steel parts are thermal refined.
5.The machine adopts a stable rigid structure and consists mainly of base, table, column, cross rail, tool head, hydraulic system and electric system. Cross rail moves up and down along guideways of the column.
1.I.D. & O.D. cylindrical turning,
2. end-facing,
3. I.D. & O.D. cone turning,
4. grooving,
5. boring, drilling, reaming, etc.
Specifications | Unit | Parameter |
Max. turning diameter | mm | 2500 |
Max. working height | mm | 1600/2000/2500/3000 |
Max. weight of workpiece | T | 10 |
Table diameter | mm | 2250 |
Speed range of table | r/min | 2~63 |
Speed-step of table |
| 16 |
Max. torque of table | N.m | 56000 |
Max. cutting resistance of right tool post | KN | 35 |
Max. cutting resistance of left tool post | KN | 28 |
Travel of right tool post (Horizontal) | mm | 1400 |
Travel of right tool post (Vertical) | mm | 1000 |
Travel of left tool post (Horizontal) | mm | 1400 |
Travel of left tool post (Vertical) | mm | 1000 |
Feed range and speed-step of tool post | mm/min | 0.24~145 18 steps |
Rapid traveling speed of tool post | mm/min | 1550 |
Crossbeam fluctuation travel | mm | 1300 |
Crossbeam fluctuation speed | mm/min | 350 |
Moving degrees limit of tool post |
| ±30° |
Cutting section of tool bar | mm | 40×50 |
Crossbeam fluctuation motor power | KW | 7.5 |
Cutting feed two-speed motor power of left feeding-box | KW | 1.3/1.8 |
Fast motor power | KW | 2.2 |
Power of main motor | KW | 55 |
Name | Manufacturer | Spec. | Remark |
Main motor | Made in China | 55KW | Optional |
Bearing | ZWZ(Wafangdian) |
|
|
Hydraulic elements | Dalian Yuhe Hydraulic Components Factory |
|
|
Electrical elements | CHNT/Shaman |
| Optional |
Screw rod | San Hesheng Shandong Binzhou |
|
|
Gear | Qier supporting manufacturer supplier |
|
|
Spline shaft | Qier Supporting manufacturers suppliers |
|
|
Worm gear/ screw | Made in China |
|
|
Digital Display Device | Changchun Institute of Optics and Electronics/ Guangzhou Wanhao |
| Optional |
Table rail plate | Made in China |
|
kinds of colors for your choice/can be customized
