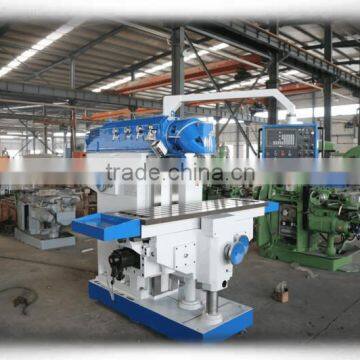

X56/57 Series CE ram milling machine made in China

FOB Price

USD $17,888 - $27,633 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	X5646 X5750 X5750A ram milling machine
Type	Other, ram type	CNC or Not	Normal
Voltage	220V/380V/415V/440V/480V	Power(W)	5.5/7.5kW
Dimension(LWH)	depends	Weight	4/5/5.5 tons
Certification	CE; ISO9001:2008; GB/T19001:2008	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

X56/57 ram milling machine Technical Data

Main Features

Such ram milling machine has following features:

1. high strength HT-200 and high rigidity cast iron of bed;

2. guideways quenched and fine grinded;

3. x, y, z axis automatic feeding driven by servo motors;

4. ballscrew can be ordered specially;

5. CE Standard and CE Certificate;

6. DRO is available, too.

Main Technical Data

SPECIFICATIONS	UNIT	X5646 (UWF10)	X5750 (UWF12B)	X5750A (UWF15B)
Table size	mm	460×1235	500×1600	500×2000
T-slots(NO.×width×pitch)	mm	5×18×80	5×18×80	5×18×80
Table travel (X×Y×Z)	mm	900×650×450	1200×700×500	1500×700×500
Swivel angle of milling head	-	360°	360°	360°
Spindle taper	-	ISO40	ISO50	ISO50
Spindle speed range	r.p.m	(27) 30~2050	(27) 30~2050	(27) 30~2050
Table feed(X/Y/Z)	mm/min	10~1000/10~1000/6~640	10~1000/10~1000/5~500	10~1000/10~1000/5~500
Table rapid speed		2200/2200/1100	2200/2200/1100	2200/2200/1100
Distance between spindle nose and table surface	mm	32~482	25~525	25~525
Distance from spindle center line to column	mm	47~697	55~755	55~755
Main motor power	kW	5.5	7.5	7.5
Feed motor	kW	AC servo motor X/Y:15NM; Z: 18NM	AC servo motor X/Y:15NM; Z: 18NM	AC servo motor X/Y:15NM; Z: 18NM
Max load	kg	800	1800	1800
Overall size	mm	1835×2362×2090	2475×2260×2180	2986×2260×2180
weight	kg	4000	5000	5500
