S2063 Bed Type Cnc Vertical Milling Machine
- Dalian/Qingdao China
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Liaoning, China | |
| Brand Name | LFM | Model Number | S2063 bed type cnc vertical milling machine | |
| Type | Universal | CNC or Not | Normal | |
| Voltage | 220V/380V/415V/440V/480V | Power(W) | 7.5kW | |
| Dimension(L*W*H) | 2280x2900x2950mm | Weight | 5400kgs | |
| Certification | CE; ISO9001:2008; GB/T19001:2008 | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

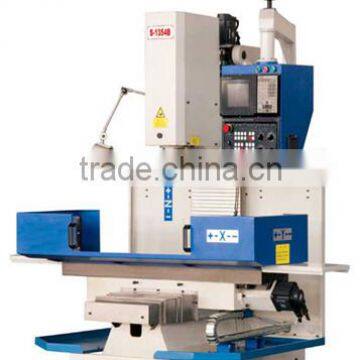

S2063 bed type cnc vertical milling machine
Such cnc vertical milling machine has following features:
1. widely used for processing flat face, slope face, keyway, key groove, slot and drilling, reaming, boring;
2. high quality with competitive price;
3. CE Standard and CE Certificate;
4. Taiwan original 3 axes Taiwan leadscrews make sure our milling machines performance better
than others.
5. The Taiwan original spindle adopted so that to make sure the cutting can be very
fluently and effiecient.
5. About the guideway, we choose two type guideway linear guideway and square guideway for different model:
The linear guideway get the high efficiency and high speed,
The square guideway can load more than others.
1. Main parts are original from TAIWAN;
2. GERMANY technology, main technology guided by GERMANY engineer;
3. Providing machine as OEM form for GERMANY Company as long term;
4. Full production is supervised by TAIWAN engineers;
5. Strictly according to CHINA National Standard and CE Safety Standar;
6. CE Certificate;
Specifications | Unit | S2063 | S2063A |
Table size (L × W) | mm | 1600×510 | 1600×510 |
Table loading capability | kg | 1200 | 1200 |
X Travel | mm | 1200 | 1200 |
Y Travel | mm | 700 | 740 |
Z Travel | mm | 600 | 740 |
Max. move speed(X/Y/Z) | mm/min | 10000 | 10000 |
Max. feed speed(X/Y/Z) | mm/min | 4000 | 4000 |
Spindle speed range | r/min | 40~6000 | 40~6000 |
Spindle taper |
| BT40/BT50 | BT40/BT50 |
Spindle motor power | kW | 7.5 | 7.5 |
X/Y/Z servo motor power | kW | 2.8 | 2.8 |
Spindle quill diameter | mm | Φ150/Φ155 | Φ150/Φ155 |
Distance from spindle nose end face to table surface | mm | 60~660 | 60~800 |
Ball screws (X axis) | mm | Φ40×10 P4 Double nuts | Φ40×10 P4 Double nuts |
Ball screws (Y axis) | mm | Φ40×10 P4 Double nuts | Φ40×10 P4 Double nuts |
Ball screws (Z axis) | mm | Φ40×10 P4 Double nuts | Φ40×10 P4 Double nuts |
Positioning accuracy | mm | 0.03 | 0.03 |
Repeat positioning accuracy | mm | 0.016 | 0.016 |
Packing dimension (Semi-closure guard) (L × W × H) | mm | 2280×2900×2850 | 2280×2900×2950 |
Packing dimension (Full-closure guard) (L × W × H) | mm | 3700×2800×2870 | 3700×2890×2970 |
Machine weight (Semi-closure guard) | kg | 5000 | 5400 |
Machine weight ((Full-closure guard) | kg | 6400 | 6900 |
kinds of colors for your choice/can be customized
