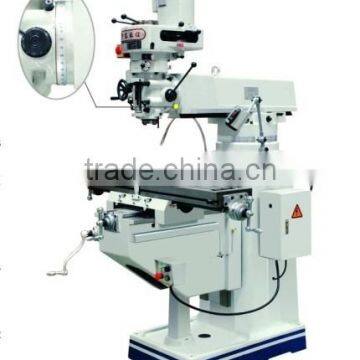

X6325A CE vertical turret milling machine

FOB Price

USD $4,992 - $5,362 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	X5325A vertical turret milling machine
Type	Universal	CNC or Not	Normal
Voltage	220V/380V/415V/440V/480V	Power(W)	2.25 kW
Dimension(LWH)	1516x1550x2080mm	Weight	1380kgs
Certification	CE; ISO9001:2008; GB/T19001:2008	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

X6325A vertical turret milling machine technical data

Main Usage

are widely used for processing flat face, slope face, keyway, key groove, slot and drilling, reaming, boring.

Main Featurers

1. The milling head can turn 90°each side;

2. Ram can be turned 180° horizontally;

3.Spindle speed range is wide ranged and higher speed.

4.The spindle sleeve feeding can be set.

5.It is equipped with over load protection device.

6.Spindle sleeve and guide way is high frequency quenching.

7.Our milling machine is good looking and practical.

Characters

Rectangular guide way on Y-and Z-axis is featured a good rigidity and stability.
The guide way on saddle is lined with TF wearable material.

Main Technical Data

Specifications	Unit	Parameter
Table size	mm	254×1270 254×1370
Longitudinal travel	mm	850/950
Cross travel	mm	400
Vertical travel	mm	420
T-slot no and size	mm	3×16
Ram travel	mm	470
Distance from spindle to table surface	mm	0~405
Spindle hole taper		Standard:R8 Optional: ISO30 ISO40
Spindletravel	mm	127
Spindlespeed	rpm	Standard: 16 gears 65/50Hz ~4500/60Hz 80~5440 Optional: Stepless speed 65~4500
Auto. quill feed	rpm	3 gears 0.04(0.0015)/0.08(0.003)/0.15(0.006)
Spindle motor	kW	2.25 (3hp)
Head swivel		90°
Head tilting	mm	45°
Size of package	mm	1516×1550×2080
Weight	kg	1380
