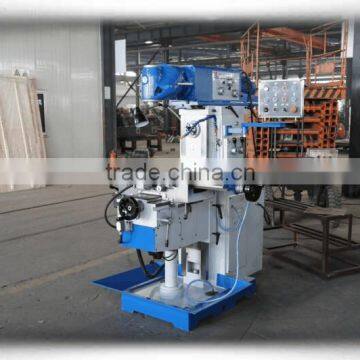

X5646 CE Ram Milling Machine Made in China

FOB Price

US$ 18,885 - 19,885 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	X5025 X5028 X5032 X5040
Type	Universal	CNC or Not	Normal
Voltage	220V/380V/415V/440V/480V	Power(W)	5.5kW
Dimension(LWH)	1835x2362x2090mm	Weight	4000kgs
Certification	CE; ISO9001:2008; GB/T19001:2008	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

X5646 CE ram milling machine technical data

Main Features

X5646 ram milling machine has following features:

1. high strength HT-200 and high rigidity cast iron of bed;

2. guideways quenched and fine grinded;

3. x, y, z axis automatic feeding driven by servo motors;

4. ballscrew can be ordered specially;

5. CE Standard and CE Certificate;

6. DRO is available, too.

7. X5646 is equal to UWF10 Europen Model;

Main Technical Data

SPECIFICATIONS	UNIT	X5646 ram milling machine (UWF10)
Table size	mm	460×1235
T-slots(NO.×width×pitch)	mm	5×18×80
Table travel (X×Y×Z)	mm	900×650×450
Swivel angle of milling head	-	360°
Spindle taper	-	ISO40
Spindle speed range	r.p.m	(27) 30~2050
Table feed(X/Y/Z)	mm/min	10~1000/10~1000/6~640
Table rapid speed		2200/2200/1100
Distance between spindle nose and table surface	mm	32~482
Distance from spindle center line to column	mm	47~697
Main motor power	kW	5.5
Feed motor	kW	AC servo motor X/Y:15NM; Z: 18NM
Max load	kg	800
Overall size	mm	1835×2362×2090
weight	kg	4000
