CW61180 10 tons load china heavy duty horizontal metal lathe
- Dalian/Tianjian/Shanghai China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
CW61200x8000 10 tons load china heavy duty lathe
-
CC61250 Series heavy duty manual horizontal lathe machine made in china
-
Catalogue of Heavy Horizontal Lathe for Heavy Machining
-
CW61250x5000 10 tons load heavy duty lathe machine
-
CW61180x6m 10 tons load heavy duty horizontal lathe machine
-
CW61200x5000 10 tons load china heavy duty lathe machine
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 1800mm | Place of Origin | Liaoning, China | |
| Brand Name | LFM | Model Number | CW61180 heavy duty horizontal metal lathe | |
| Voltage | according to user's requirement | Power(W) | 22kW | |
| Dimension(L*W*H) | depends | Weight | depends | |
| Certification | ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

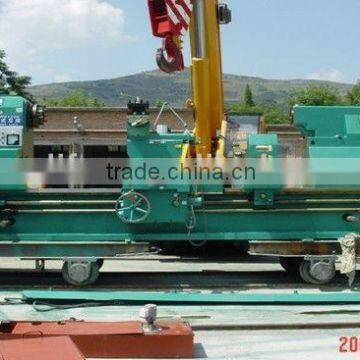

CW61180 heavy duty horizontal metal lathe
Such heavy duty lathe machines have following features:
1. mainly suitable for various cutting jobs, such as internal and external cylindrical surfaces turning, facing and various pipe thread cutting.
2. can also be used for drilling, boring trepanning etc.
3. The compound rest slide can be used individually by power for cutting a 300mm taper surface, or used with aid of longitudinal feed motion of the carriage by power for cutting long taper surface.
4. fine appearance, concentrated control arrangement for easy operating and convenient maintenance.
Specifications | Unit | Parameter | Parameter | Parameter | Parameter |
Swing over bed | mm | 1800 | 1800 | 1800 | 1800 |
Swing over carriage | mm | 1400 | 1400 | 1400 | 1400 |
Distance between centers | mm | 5000 | 6000 | 8000 | 10000 |
Max. Cutting length | mm | 4800 | 5800 | 7800 | 9800 |
Width of bed | mm | 1100 | 1100 | 1100 | 1100 |
Support capacity between centers | T | 10 | 10 | 10 | 10 |
Spindle bore | mm | 100 | 100 | 100 | 100 |
Spindle nose |
| A2-15 | A2-15 | A2-15 | A2-15 |
Taper of spindle |
| Metric No. 140 | Metric No. 140 | Metric No. 140 | Metric No. 140 |
Spindle speed | rpm | 2 ~ 200 with 21 steps | 2 ~ 200 with 21 steps | 2 ~ 200 with 21 steps | 2 ~ 200 with 21 steps |
Number of feeds and range |
| 97 | 97 | 97 | 97 |
Max. travel of cross slide | mm | 520 | 520 | 520 | 520 |
Travel of upper slide | mm | 200 | 200 | 200 | 200 |
Travel of X-Axis | mm | 880 | 880 | 880 | 880 |
Number and range of longitudinal | mm | 0.064 ~ 12 | 0.064 ~ 12 | 0.064 ~ 12 | 0.064 ~ 12 |
Number and range of cross slide | mm | 0.032 ~ 6 | 0.032 ~ 6 | 0.032 ~ 6 | 0.032 ~ 6 |
Number and range of top slide | mm | 0.016 ~ 3 | 0.016 ~ 3 | 0.016 ~ 3 | 0.016 ~ 3 |
Rapid traverse | mm / min | Longitudinal 3740 | Longitudinal 3740 | Longitudinal 3740 | Longitudinal 3740 |
Rapid cross slide | mm / min | 1870 | 1870 | 1870 | 1870 |
Rapid top slide | mm / min | 935 | 935 | 935 | 935 |
No. and range of metric threads | mm | 45 kinds 1~120 | 45 kinds 1~120 | 45 kinds 1~120 | 45 kinds 1~120 |
No. and range of inch threads | T. P. I. | 42 kinds 30~1 / 4 | 42 kinds 30~1 / 4 | 42 kinds 30~1 / 4 | 42 kinds 30~1 / 4 |
No. and range of module threads |
| 46 kinds 0.5~60 | 46 kinds 0.5~60 | 46 kinds 0.5~60 | 46 kinds 0.5~60 |
No. and range of diametric threads | D. P. | 48 kinds , 60 ~ 0.5 | 48 kinds , 60 ~ 0.5 | 48 kinds , 60 ~ 0.5 | 48 kinds , 60 ~ 0.5 |
Max. travel of tool post | mm | 300 | 300 | 300 | 300 |
Tool shank section | mm | 45 x 45 | 45 x 45 | 45 x 45 | 45 x 45 |
Taper in tailstock quill |
| Metric No. 80 | Metric No. 80 | Metric No. 80 | Metric No. 80 |
Dia. Of tailstock sleeve | mm | 200 | 200 | 200 | 200 |
Max. Travel of tailstock quill | mm | 300 | 300 | 300 | 300 |
Power of main motor | KW | AC22 | AC22 | AC22 | AC22 |
Power of rapid motor | KW | 1.5 | 1.5 | 1.5 | 1.5 |
Power of pump motor | KW | 0.55 | 0.55 | 0.55 | 0.55 |
Name | Size | Note |
4-jaw chuck | DIA. 1400 mm | 1 SET |
Steady rest | RANGE 220 ~ 630 mm | 1 SET |
Dead center |
| 2 PCS |
Reducing sleeve |
| 1 PCS |
Living center |
| 1 SET |
Cooling system |
| Yes |
Work light |
| Yes |
Special tools |
| Yes |
Name | Size | Price |
Steady rest | RANGE 500 ~ 1100 mm |
|
Follow rest. | 50 ~220 mm |
|
Support with two rollers | RANGE 850 ~ 1200mm |
|
Digital display. Both directions | Length 5000 mm |
|
| Length 6000 mm |
|
| Length 8000 mm |
|
Digital display. Both directions | Length 10000 mm |
|
Taper turning device | LENGTH 800 mm |
|
Motorized tailstock |
|
|
kinds of colors for your choice/can be customized
